Description

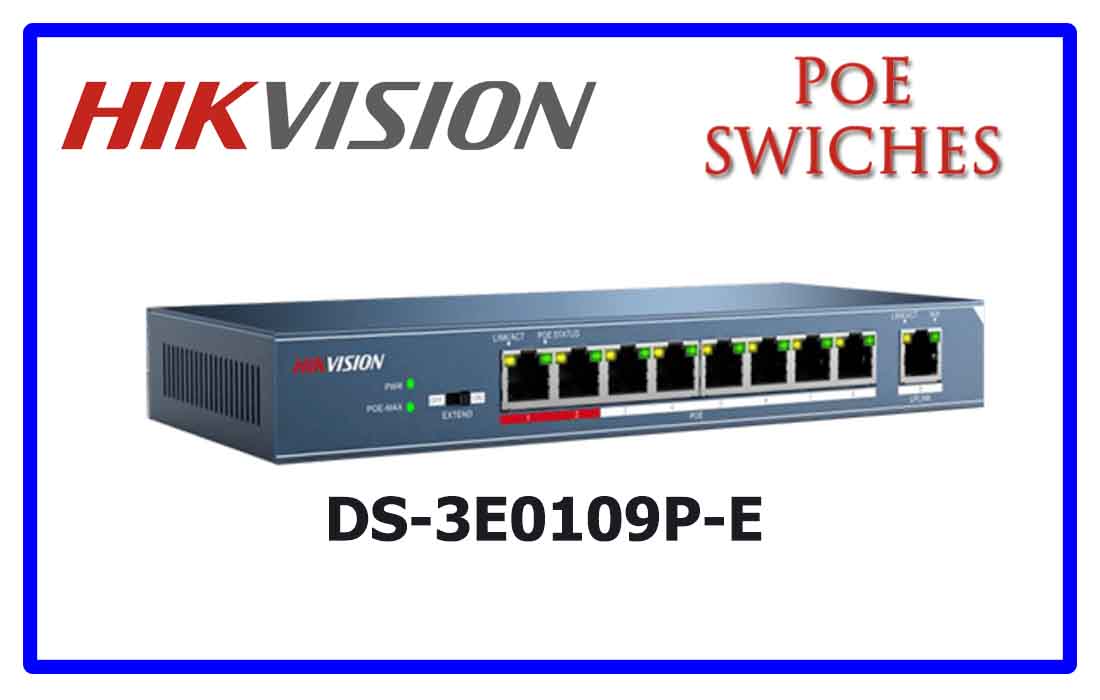

| Model | DS-3E0109P-E |
|---|---|
| Network Ports: | 9 |
| PoE Port: | 8, 10/100Mbps RJ45 ports |
| Uplink Port: | 1, 100M Ethernet Port |
| Network Protocol: | IEEE802.3,802.3u,802.3x, 802.3af, 802.3at |
| Switching Capacity: | 1.8Gbps |
| Max. Forwarding Rate: | 1.34Mpps |
| High Priority Ports: | Ports 1-2 |
| Forwarding Mode: | Store-and-forward |
| MAC Address Table: | 4k |
| Flow Control: | IEEE802.3x full duplex |
| PoE Standard: | IEEE802.3af, IEEE802.3at |
| PoE Power Budget: | 123W |
| Working Mode: | Extend On:250m,10M,CAT 5e Extend Off:100m |
| Power Supply: | 51V DC, 2.5A |
| Power Consumption: | ≤127W |
| Surge Protection: | 4KV |
| Working Temperature: | Temperature: 0℃-40℃ |
| Working Humidity: | Humidity: 10%-90% , non-condensing |
| Storage Temperature: | Temperature: -40℃-70℃ |
| Storage Humidity: | Humidity: 5%-90% , non-condensing |
| Weight: | 0.57kg |
| Dimension: | 235mm*103mm*27mm |
