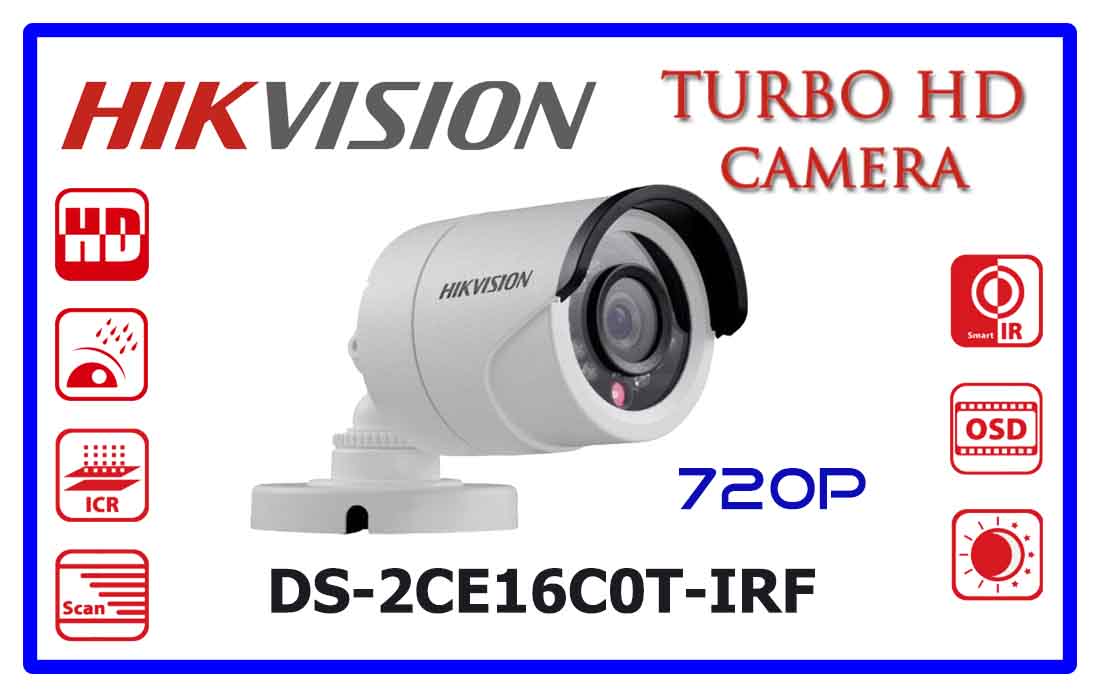

DS-2CE16C0T-IRF

logo-2

1 megapixel high performance CMOS
Analog HD output, up to 720p resolution
Day/Night switch
DNR
Smart IR
Up to 20 m IR distance
Switchable TVI/AHD/CVI/CVBS
IP66

Categories: , , ,

Description

DS2CE16C0T-IRF – Product Description

DS-2CE16C0T-IRF – User Manual

Model DS-2CE16C0T-IRF
Image Sensor: 1MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1296(H)x732(V)
Min. Illumination: 0.1 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 3.6mm (2.8mm, 6mm optional), Angle of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm)
Lens Mount: M12
Adjustment Range: Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360°
Day& Night: IR cut filter with auto switch
Video Frame Rate: 720p@25fps/720p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±15%
Power Consumption: Max. 4W
Weather Proof: IP66
IR Range: Up to 20m
Dimension: Φ70×149.5 mm (Φ2.76” ×5.89”)
Weight: 400 g
Every piece of security system equipment we carry has been fully tested to ensure our customers receive the best quality, performance and reliability. We are authorized dealers for all the security camera system products you see here, which allows us to offer the best pricing and an exceptional level of customer services. Our Customer support is unmatched with our 1 year warranty and lifetime technical support.
