Description

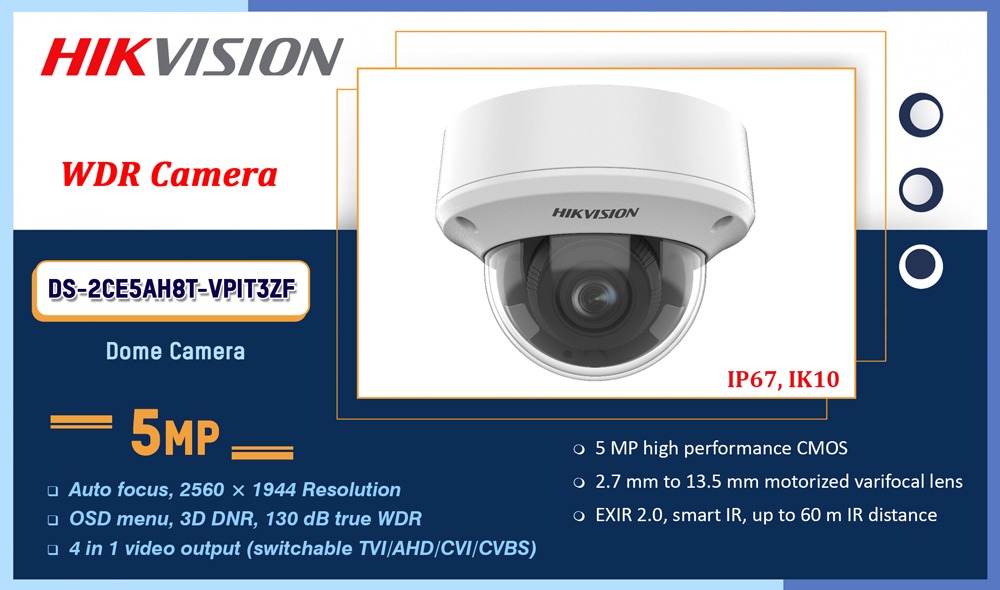

Datasheet: DS-2CE5AH8T-VPIT3ZF
| Model | DS-2CE5AH8T-VPIT3ZF |
|---|---|
| Camera | |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 2560 (H) × 1944 (V) |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens Mount: | φ14 |
| Adjustment Range: | Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355° |
| Day& Night: | IR cut filter |
| Synchronization: | Internal Synchronization |
| Menu | |
| D/N Mode: | Auto/Color/BW (Black and White) |
| Auto White Balance: | Auto / Manual |
| BLC: | Support |
| AGC: | Support |
| Language: | English |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Out: | 1 HD analog output |
| General | |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Impact Protection: | IK10. |
| Weather Proof: | IP67 |
| IR Range: | Up to 60m |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | Ø 145 mm × 111.3 mm ( Ø 5.70″ × 4.37″) |
| Weight: | Approx. 830 g (1.83 lb.) |
