Description

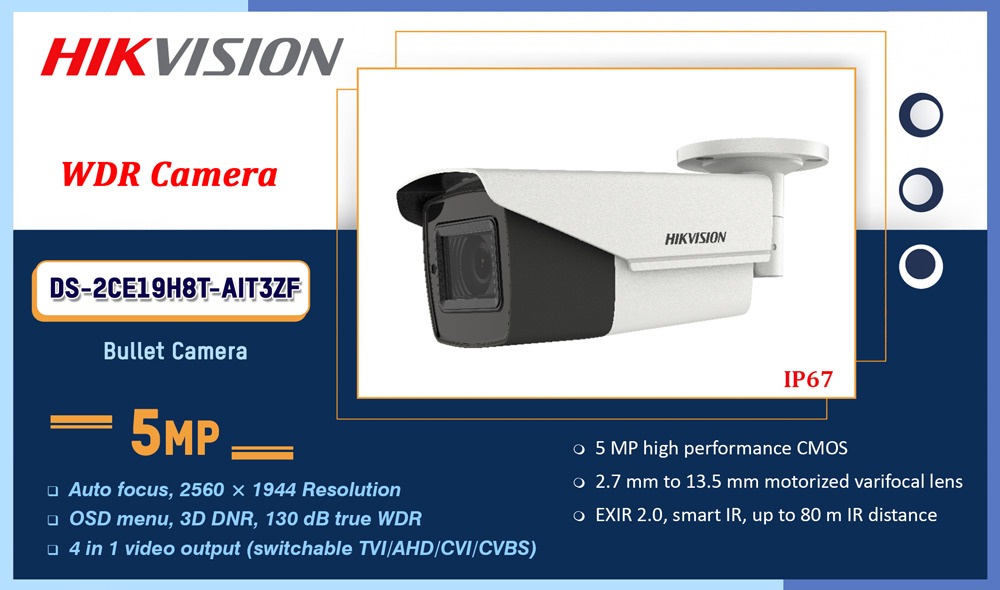

Datasheet: DS-2CE19H8T-AIT3ZF
User Manual: DS-2CE19H8T-AIT3ZF
Camera
- Image Sensor: 5 megapixel progressive scan CMOS
- Max. Resolution: 2560 (H) × 1944 (V)
- Min. Illumination: Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens
- Focal Length & FOV: 92.3° to 29.3°
- Lens Mount: Φ 14
- Image Settings: Brightness, Sharpness, 3D DNR, Mirror, Smart IR
- Frame Rate
- TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
- AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
- CVI: 4 MP@25fps, 4 MP@30fps
- CVBS: PAL, NTSC
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): ≥ 130 dB
- Image Enhancement: BLC
- Privacy Mask: 4 programmable privacy masks
- Noise Reduction: Level 1 to 9
- White Balance: Auto/Manual
- AGC: Yes
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
Event
- Motion Detection: 4 programmable areas
General
- Material: Metal
- Dimension: 84.5 mm × 92 mm × 255.1 mm (3.33″ × 3.62″ × 10″)
- Weight: Approx. 930 g (2.05 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Language: English
- Power Supply: -A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
- Consumption: -A: Max. 10.5 W
- IR Range: Up to 80 m
Approval
- Protection: IP67
