Description

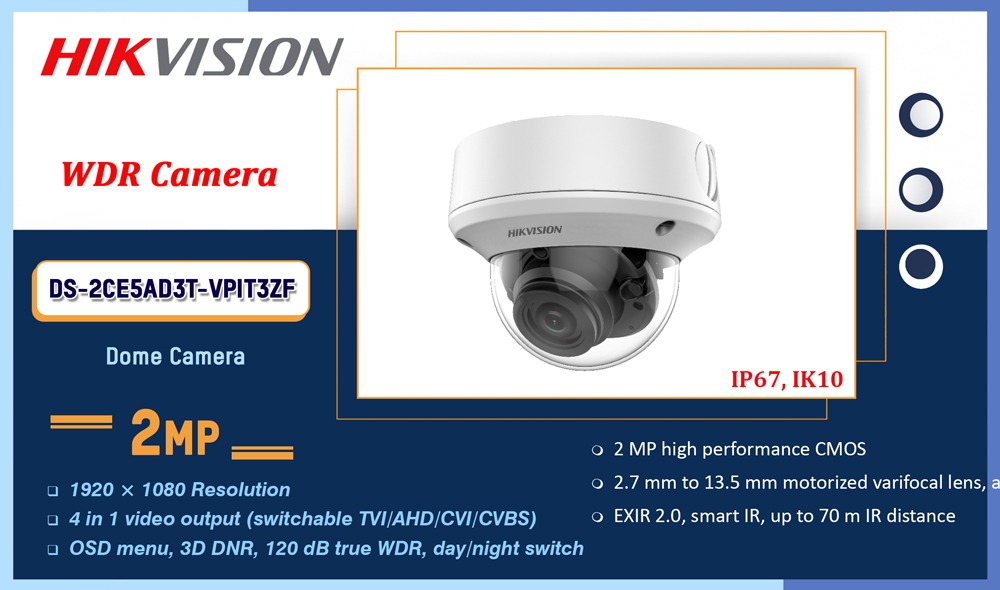

Datasheet: DS-2CE5AD3T-VPIT3ZF
User Manual: DS-2CE5AD3T-VPIT3ZF
Camera
- Image Sensor: 2.0 megapixel progressive scan CMOS
- Max. Resolution: 1920 (H) ×1080 (V)
- Min. Illumination: 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.7 mm to 13.5 mm
- Focal Length & FOV: 102° to 31°
- Lens Mount: Φ 14
- Parameters Switch: STD/HIGH-SAT
- Image Settings: Brightness, Sharpness, 3D DNR, Mirror, Smart IR
- Frame Rate
- PAL: 1080p@25fps
- NTSC: 1080p@30fps
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): ≥ 120 dB
- Image Enhancement: BLC, HLC
- White Balance: ATW/MWB
- AGC: High/Medium/Low
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material: Metal
- Dimension: Ø145 mm × 111.3 mm (5.70″ × 4.37″)
- Weight: Approx. 830 g (1.83 lb.)
-A: Approx. 870 g (1.92 lb.) - Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Language: English
- Power Supply: 12 VDC ±25%
-A: 24 VAC ±15%, 12 VDC ±20%
*You are recommended to use one power adapter to supply the power for one camera. - Consumption: Max. 7.7 W
-A: Max. 9.7 W - IR Range: Up to 70 m
Approval
- Protection: IP67, IK10
