DS-2CD3656G2T-IZS

logo-2

Key Features

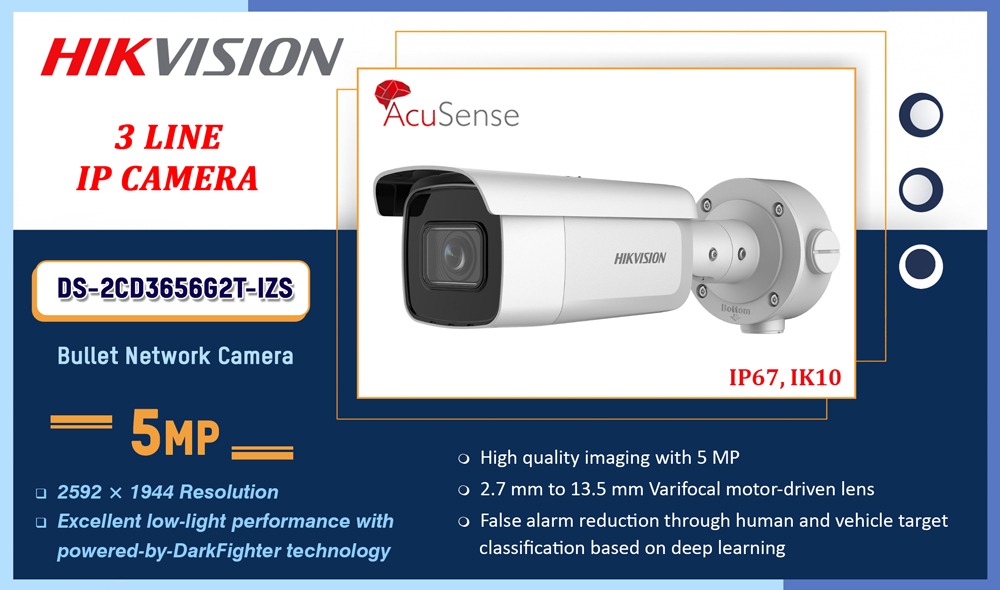

  • 5 MP AcuSense Varifocal Bullet Network Camera
  • High quality imaging with 5 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • False alarm reduction through human and vehicle target classification based on deep learning
  • Audio and alarm interface available
  • Water and dust resistant (IP67) and vandal-resistant (IK10)
  • 3D DNR technology delivers clean and sharp images
  • Motorized varifocal lens for easy installation and monitoring
Categories: , , ,

Description


Datasheet: DS-2CD3656G2T-IZS


User Manual: DS-2CD3656G2T-IZS



Camera
  • Image Sensor: 1/2.7″ Progressive Scan CMOS
  • Max. Resolution: 2592 × 1944
  • Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
  • Lens Type: Varifocal lens, motor-driven lens, 2.7 to 13.5 mm and 7 to 35 mm optional
  • Focal Length & FOV
    • 2.7 to 13.5 mm: horizontal FOV 103° to 32°, vertical FOV 73° to 24°, diagonal FOV 142° to 40°
    • 7 to 35 mm: horizontal FOV 28° to 10°, vertical FOV 21° to 8°, diagonal FOV 35° to 13°
  • Lens Mount
    • 2.7 to 13.5 mm: Ø14
    • 7 to 35 mm: Integrated
  • Iris Type: Auto-iris
  • Aperture
    • 2.7 to 13.5 mm: F1.4
    • 7 to 35 mm: F1.6
DORI
  • DORI
    • 2.7 to 13.5 mm: D: 64 to 187 m, O: 25 to 74 m, R: 12 to 37 m, I: 6 to 18 m
    • 7 to 35 mm: D: 200 to 580 m, O: 79 to 230 m, R: 40 to 116 m, I: 20 to 58 m
Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range
    • 2.7 to 13.5 mm: up to 60 m
    • 7 to 35 mm: up to 80 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
Video
  • Main Stream
    • 50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)
    • 60 Hz: 24 fps (2592 × 1944)

      30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream
    • 50 Hz: 25 fps (640 × 480, 640 × 360)
    • 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream
    • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      *Third stream is supported under certain settings.

  • Fourth Stream
    • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

      *Fourth stream is supported under certain settings.

  • Video Compression
    • Main stream: H.265/H.264/H.264+/H.265+
    • Sub-stream: H.265/H.264/MJPEG
    • Third stream: H.265/H.264
    • Fourth stream: H.265/H.264/MJPEG

      *Third stream and fourth stream are supported under certain settings.

  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region Of Interest (ROI): 5 fixed regions for main stream and sub-stream
  • Target Cropping: Yes
Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
Network
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage
    • MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
    • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser
    • Plug-in required live view: IE 10+
    • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
    • Local service: Chrome 57.0+, Firefox 52.0+
  • Image Parameters Switch: Yes
  • Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC, HLC, 3D DNR
Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Audio
    • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
    • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm: 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
  • Reset Key: Yes
  • Power Output: 12 VDC, max. 100 mA (supported by all power supply types)
Event
  • Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection
  • Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
Deep Learning Function
  • Face Capture: Yes
  • Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection
General
  • Power
    • 12 VDC ± 25%, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug
    • PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
  • Dimension: Ø105 mm × 340.8 mm (Ø4.1″ × 13.4″)
  • Package Dimension: 385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
  • Weight: Approx. 1330 g (2.9 lb.)
  • With Package Weight: Approx. 2176 g (4.8 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approval
  • EMC
    • FCC SDoC (47 CFR Part 15, Subpart B);
    • CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
    • RCM (AS/NZS CISPR 32: 2015);
    • IC VoC (ICES-003: Issue 6, 2016);
    • KC (KN 32: 2015, KN 35: 2015)
  • Safety
    • UL (UL 60950-1);
    • CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
    • CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
    • BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
    • LOA (IEC/EN 60950-1)
  • Environment
    • CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
    • Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
