Description

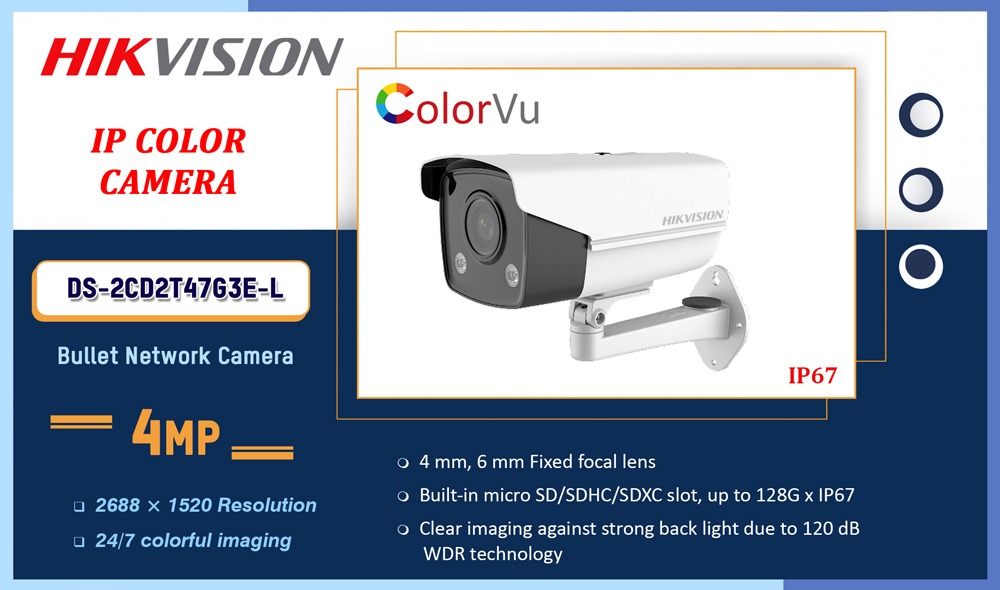

Datasheet: DS-2CD2T47G3E-L
User Manual: DS-2CD2T47G3E-L
Camera
- Image Sensor: 1/1.8″ Progressive Scan CMOS
- Min. Illumination: s, AGC ON), 0.002 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Wide Dynamic Range: 120dB
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°
Lens
- Focus: Fixed
- Lens Type: 4/6 mm
- FOV: 4 mm, horizontal FOV: 89°, vertical FOV: 46°, diagonal FOV: 107.5°,6 mm, horizontal FOV: 54°, vertical FOV: 29°, diagonal FOV: 63°
- Aperture: F1.0
- Lens Mount: M16
- Aperture Type: Fixed
Illuminator
- White Light Range: Warm white LEDs (3000K), up to 30m
Video
- Max. Resolution: 2560 × 1440
- Main Stream: 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 24fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream: 50Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240),60Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240)
- Video Compression: Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- H.264+: Main stream supports
- H.265+: Main stream supports
- Scalable Video Coding (SVC): H.265 encoding and H.264 encoding support
- Region of Interest (ROI): No
Network
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (PROFILE S, PROFILE G), ISAPI
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- User/Host: Up to 32 users,3 levels: Administrator, Operator and User
- Network Storage: Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
- Client: iVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
- Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Alarm Trigger: Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- DNR: 3D DNR
- Image Enhancement: BLC/3D DNR/HLC/Defog
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Interface
- On-board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset: Yes
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Event
- Smart Event: Line crossing detection, intrusion detection
General
- Firmware Version: V5.5.53
- General Function: One-key reset, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup and Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- Power Consumption and Current: 12 VDC, 0.5 A, max: 6 W,PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max: 7.5 W
- Camera Dimension: Camera: 114 × 110 × 220 mm (4.5″ × 4.3″ × 8.7″)
- Camera Weight: Camera: 920 g (2 lb.)
- Accessory: The wall mount is included in the package, and the wall mount model is DS-1292ZJ
Approval
- Protection: IP67
