Description

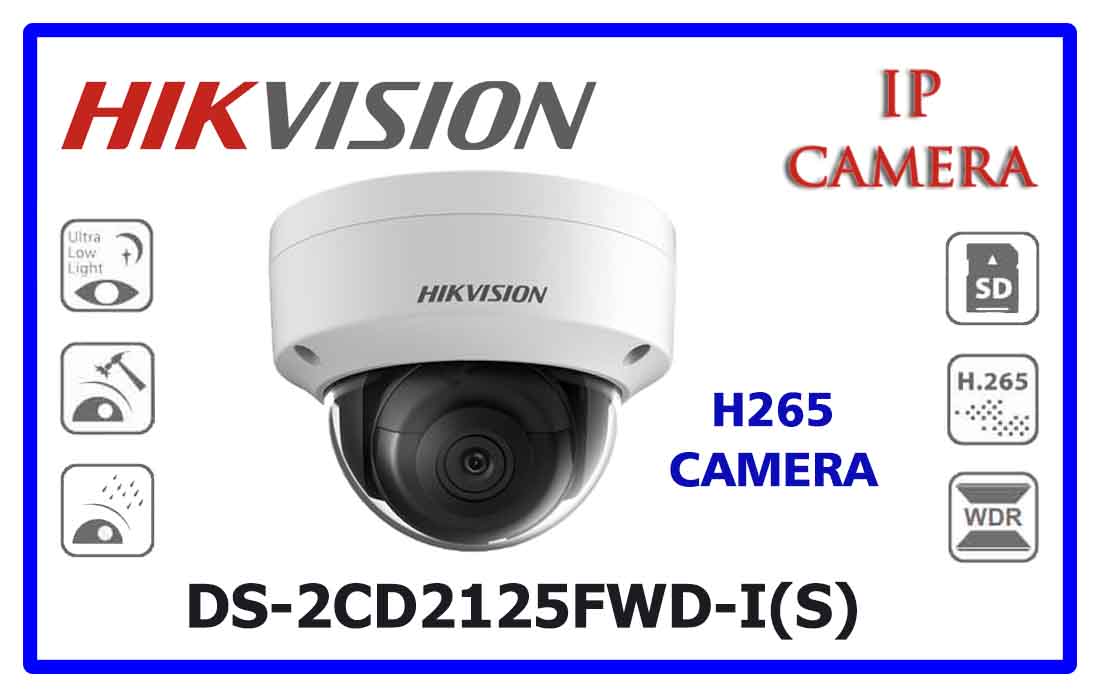

Datasheet: DS-2CD2125FWD-I(S)
User Manual: DS-2CD2125FWD-I(S)
Quick Start Guide: DS-2CD2125FWD-I(S)
| Model | DS-2CD2125FWD-I(S) |
|---|---|
| Image Sensor: | 1/2.8″ Progressive Scan CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter time: | 1/3 s to 1/100,000 s |
| Slow shutter: | Support |
| Lens: | 2.8 mm, horizontal field of view: 108° 4 mm, horizontal field of view: 86.4° 6 mm, horizontal field of view: 52° 8 mm, horizontal field of view: 40° 12 mm, horizontal field of view: 25° |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120 dB |
| Digital noise reduction: | 3D DNR |
| Video bit rate: | 32Kbps~16Mbps |
| Audio Compression: | -S: G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2) |
| Triple Streams: | Yes |
| Max. Image Resolution: | 1920 x 1080 |
| Frame Rate: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720) |
| Main Stream: | 50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240) |
| Third Stream: | 50Hz: 25fps (1280×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280×720, 640 × 360, 352 × 240) |
| Image Enhancement: | BLC/3D DNR |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Regional Cropping: | Support |
| ROI: | Support 1 fixed region for each stream, and face dynamic tracking |
| Day/Night Switch: | Auto/Scheduled |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| Line Crossing Detection: | Cross a pre-defined virtual line |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Consumption: | 12 VDC ± 25%, 5W PoE(802.3af, class 3), 6.5W |
| Weather Proof: | IP67 |
| IR Range: | Up to 30m |
| Dimensions: | Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″) |
| Weight: | Camera: 500 g (1.1 lb.) |
