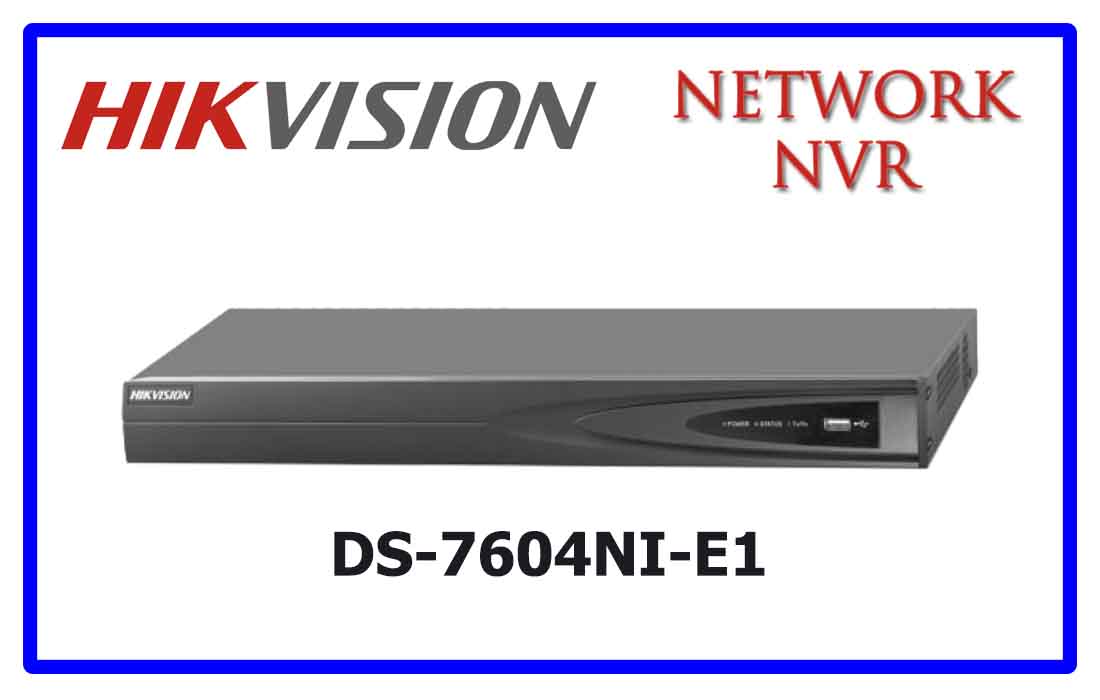

DS-7604NI-E1
You are here: Home \ Products \ DS-7604NI-E1

DS-7604NI-E1

logo-2
Third-party network cameras supported
Up to 6 Megapixels resolution recording
HDMI and VGA output at up to 1920×1080P resolution
4/8/16-ch network cameras can be connected with 40M/80M/160M incoming bandwidth
Up to 2 SATA interfaces
Support network detection, including network delay, packet loss, etc

Categories: , ,

Description

DS-7604NI-E1 – Product Descripton

DS-7604NI-E1 – User Manual

Model DS-7604NI-E1
IP video input: 4-ch
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth: 40Mbps
Outgoing bandwidth: 80Mbps
Remote connection: 128
HDMI/VGA output: 1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
1024 × 768 /60Hz
Recording Resolution: 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate: Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
Audio Output: 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback: 4-ch
Live view / Playback: 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: 4-ch@1080P
SATA: 1 SATA interface for 1 HDD
Capacity: Up to 4TB for each disk
Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface: 1 × USB 2.0 and 1 × USB 3.0
Alarm In: 4-ch(optional)
Alarm Out: 1-ch(optional)
Power Supply: 12V DC
Consumption(without hard disk and POE): ≤ 10W
Working Temperature: -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: 10 % ~ 90 %
Chassis: 1U chassis
Dimensions: 315 × 230 × 45 mm (12.4 × 9.0 × 1.8 inch)
Weight(without HDD): ≤ 1 kg
