Description

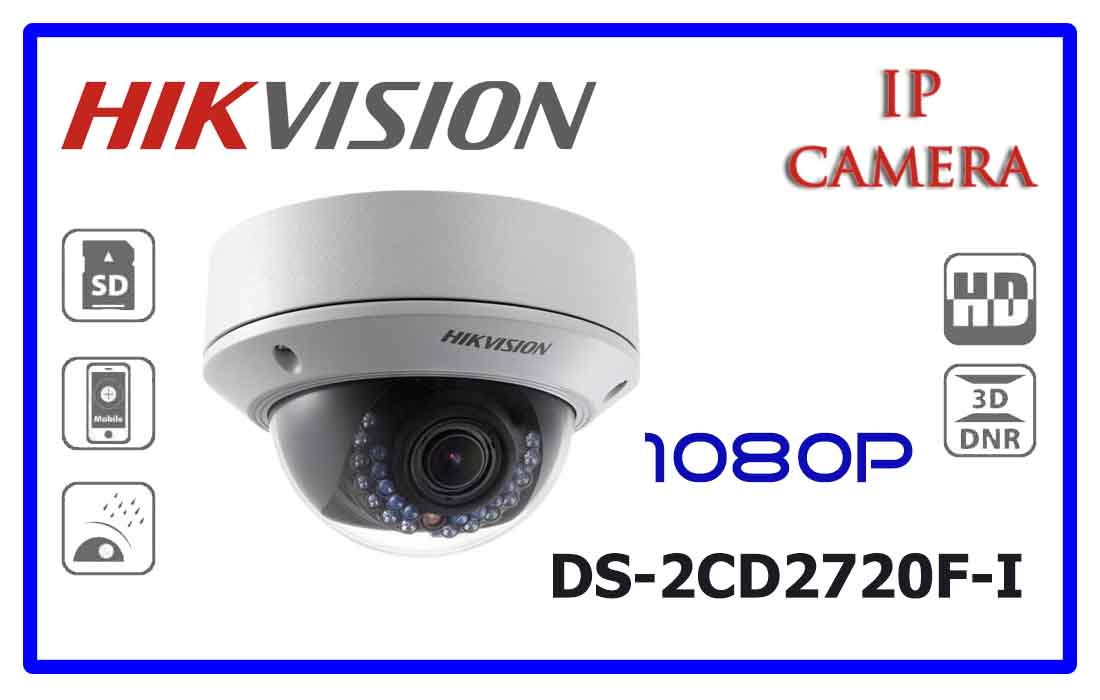

DS-2CD2720F-I – Product Description
| Model | DS-2CD2720F-I |
|---|---|
| Name | HIKVISION DS-2CD2720F-I |
| Code | K1737 |
| Video system | IP |
| Type | Ceiling |
| Compression | H.264/MJPEG |
| Resolution | 1920×1080 |
| Dual-stream | Yes |
| Frame rate | 25 fps at 1920×1080 or lower res. |
| Image sensor | 1/3″ Progressive Scan CMOS |
| Sensitivity | 0.1 lx @F1.2 with AGC ON 0 lx in IR mode |
| Focal length | 2.8 – 12 mm |
| Horizontal viewing angle | 91.2 – 28.3o |
| Mechanically switching IR filter | Yes |
| Brightness control | Yes |
| Sharpness control | Yes |
| Gain | Automatic/Preset |
| Alarm events | Motion detection, dynamic analysis, tampering |
| Recording | NAS server |
| Network interface | RJ-45 10/100Base-T |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| ONVIF | Yes |
| Card slot | microSD/microSDHC/microSDXC |
| IP, IK ratings | IP66, IK10 |
| Power | 12 VDC ± 10% PoE IEEE 802.3af |
| Power consumption | 5 W (max 7 W with IR) |
| Startup temperature range | -10°C … 40°C |
| Operating temperature range | -30°C … 60°C |
| Dimensions | Φ140 × 99.9 mm |
| Weight | 1 kg |
