Description

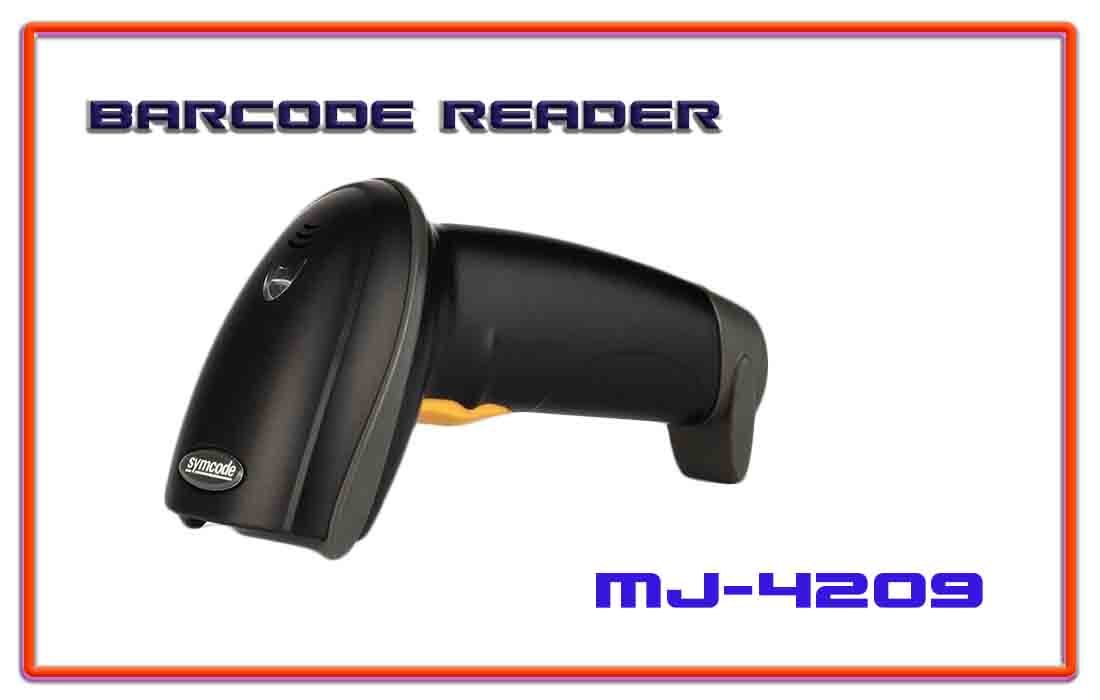

| Model | MJ 4209 |
|---|---|
| Light Source | 650(visible laser) |
| Scan Model | Single line Bi-directional |
| Scan speed | 200+2 line/sec |
| Resolution | 0.10mm(pcs0.9) |
| Width of Scan | 30mm @scanner window 220mm@200mm |
| Depth of scan | 0.250mm(0.33mm.PCS 90%) |
| Corner | 30⁰ |
| Elevation | 65⁰ |
| Deflection | 55⁰ |
| Decode Capacity | UPC/EAN, UPC/EAN(include complement code), Code128, UCC/EAN128, Code39, Code 39Full ASCII, Code128Full ASCII, Coda bar, Interleaved 2 of 5, Code93, MSI, Code11, ISBN, ISSN, china post code, etc |
| Interface | RS232, PS2, USB |
| Print Contrast | 20% minimum |
| Bit Error Rate | 1/5 million |
| Prompt | Buzzer indicator |
| Scan Model | Handheld / auto-sense |
| Size | L*W*H : 165mm*63mm*87mm |
| Weight | 129g |
| Material | ABS+PC |
| Cable standard | Straight 2.5m |
| Voltage | 5V |
| Working Current | 85mA |
| Standby Current | 36mA |
| Laser Security | Accord with national level2 laser security standards |
| Emc | CE & FCC DOC compliance |
| Working Temperature | 0⁰C – 45⁰C |
| Storage Temperature | -20⁰C-60⁰C |
| Humidity | Relative humidity 5%-95%(non-condensing) |
| Environment luminance | Max.5,000 Lux (flsorescence) |
| Anti-knock | 1.8m fall to cement |
