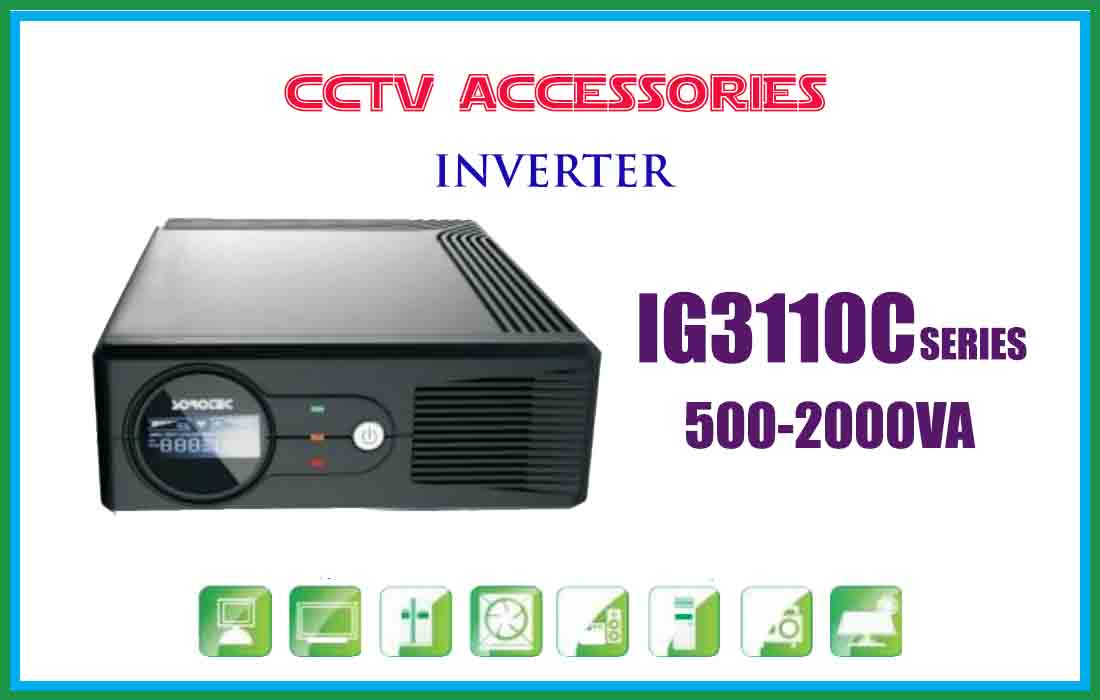

IG3110C 500-2000VA

IG3110C 500-2000VA

Optional input voltage range.
Full automatic and silent operation.
Rack-Tower design.
Automatic charging.
Built-in with 10Amp or 20Amp optional charger for up to 200Ah battery.
Auto change AC-DC.
Over-load protection.
Automatic restart.
Three-steps intelligent charging control to
recharging
LCD display, audible and visual alarm

Build-in With Big Charger:
IG3110C series long back up UPS built-in with 10
or 20 Amp charger for up to 200Ah battery.

Full Protection:
Protection for low battery voltage、overload、
output short circuit and over-temperature restrain
for thunderstriking,provide the reliable power to
the home appliances

Description

Model	IG3110C 500-2000VA
Nominal Voltage	220/230/240VAC
Nominal Frequency	50/60Hz
Input
Voltage Range	176VAC-280VAC(±3VAC)
Frequency Range	50/60Hz
Output
Voltage Regulation	220/230/240VAC±2%
Frequency Regulation	50/60Hz±0.1Hz
Wave Form	Modified sine wave
Transfer Time	Standard 2~4ms Typical 6ms
Current
DC Voltage	12V 12V 12V 24V 24V
Overcharge Protection	15V 15V 15V 30V 30V
LCD Display & LED Indicate
AC Mode	Green lighting
Battery Mode	Yellow lighting
Battery ChargingMode	Green flashing every 2 second
Overload	Red flashing every 0.5 second
Fault	Red lighting
Operating Environment
Temperature	0°~40°
Humidity	5%~95%(<40°,Non-condensing)
Storage Temperature	-25°~55°
Elevation	<1500 m
Noise(within 1 meter)	<45dB
