Description
Outdoor Doorbell |
|
|---|---|
| Image Sensor | 1/2.7″ Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.0 mm @ F2.2,viewing angle: 162° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m) |
| Max. Resolution | 2048 × 1296 |
| DNR | 2D / 3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
Connection and Function |
|
| Connection Method | Wired connection (2-Wired, capable with 4-Wired), digital signal transmission |
| Transmission Distance | Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m |
| Open the door (Gate) | Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
| Unlock (Electric strike plate) | Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual. |
| Door Open Methods | 1.RFID badge unlock (Badges × 3 pcs) 2.App remote unlock 3.Indoor display unlock |
Outdoor Doorbell Interface |
|
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Doorbell Button | Yes. The light can be set on or off. |
| Name Card | Three handwritten name cards in total (one already on the intercom panel). The light can be set on or off. |
| Terminal | Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
Functions |
|
| Intelligent Alarm | Smart human motion detection, Lingering Detection |
| Tamper Alarm | Supports |
| Video Intercom | Long-distance video two-way talk |
General |
|
| Operation Conditions | -30°C to 60°C , Humidity 95% or less (non-condensing) |
| IP Grade | Waterproof, with shield cover |
Interior Display |
|
| Display size | 7” touch screen |
| Resolution | 1024 × 600 |
Interface |
|
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Button | Screen On / Off Button |
| Terminal | Two wiring ports to connect 1st outdoor doorbell. |
| Storage | Supports microSD card up to 512 GB |
Wi-Fi Parameters |
|
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range | 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
Function |
|
| Multiple ringtones | Up to 20 ringtones |
| Functions | Live view, playback, two-way talk, video call |
Video & Audio |
|
| Operation Conditions | -10°C to 45°C, humidity 95% or less (non-condensing) |
| Weight | Net weight: 855 g (30.16 oz) With package: 1825 g (64.37 oz) |
| Size | 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch) |
| Power Supply | DC 24V / 1A power supply, adaptor (100- 240Vac) |

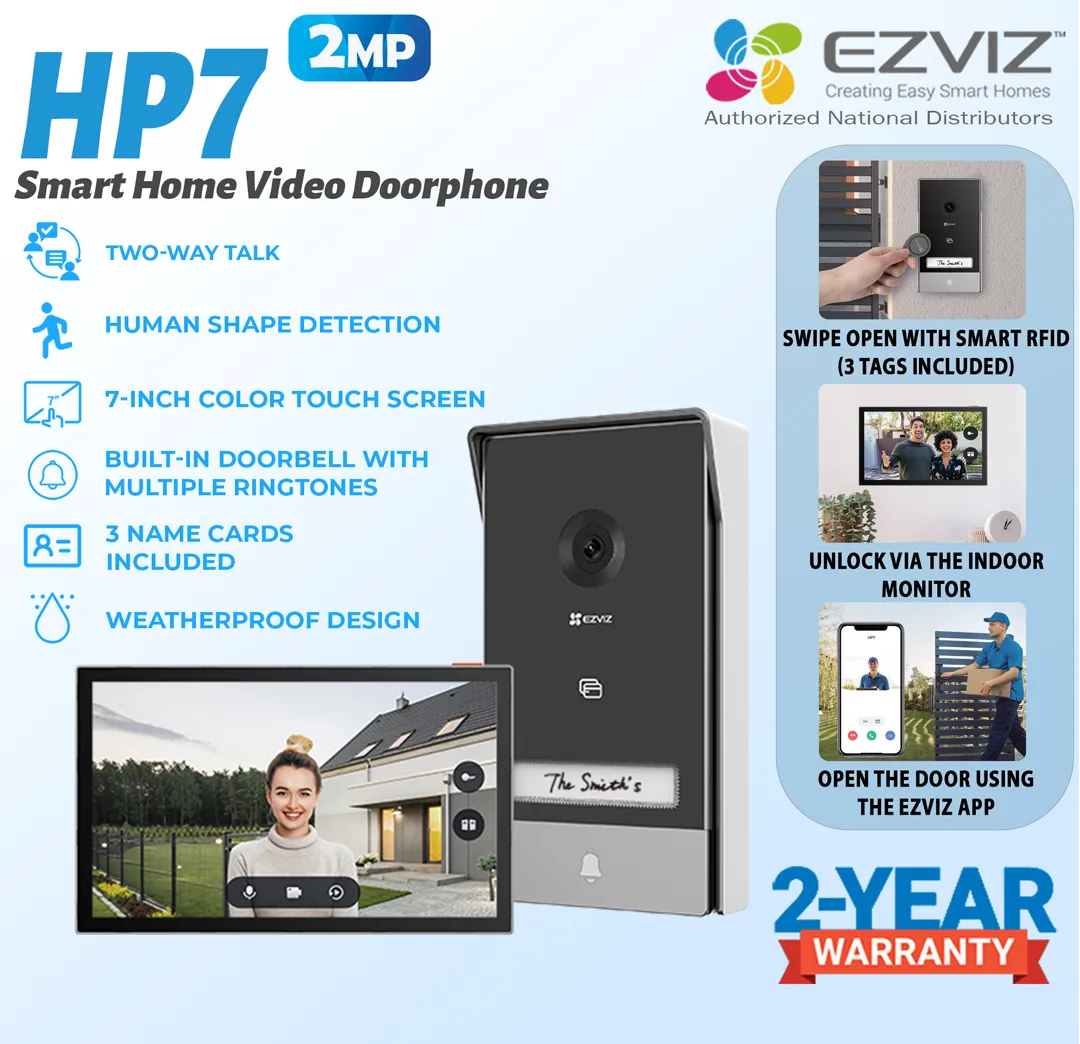

How the EZVIZ HP7 Smart Video Doorphone Works
-
Visitor presses the door bell
-
Indoor monitor rings and displays live video
-
You can see and speak to the visitor
-
Improves entry security and visitor control
Installation & Compatibility
-
Designed for home entrance installation
-
Indoor monitor connects to outdoor door unit
-
Requires professional installation guidance
-
Installation support available at showroom
Warranty & Showroom Support
-
Official Sri Lanka warranty
-
In-store product demonstration available
-
Expert consultation before purchase
-
After-sales technical support
📍 Visit the Camera.lk showroom to see the EZVIZ HP7 Smart Video Doorphone in action and get expert advice for your home.
FAQ
Is this suitable for apartments?
Yes, it is ideal for apartments and houses.
Can I talk to visitors through the doorphone?
Yes, it supports two-way audio communication.
Can I see a demo before purchasing?
Yes, demos are available at the Camera.lk showroom.
Recommended by Camera.lk Technical Team
Our technical team recommends the EZVIZ HP7 Smart Video Doorphone for modern homes, apartments, and gated houses. It offers a good balance of security, convenience, and smart home functionality, especially for homeowners who want better control over visitors at their entrance.
