Description

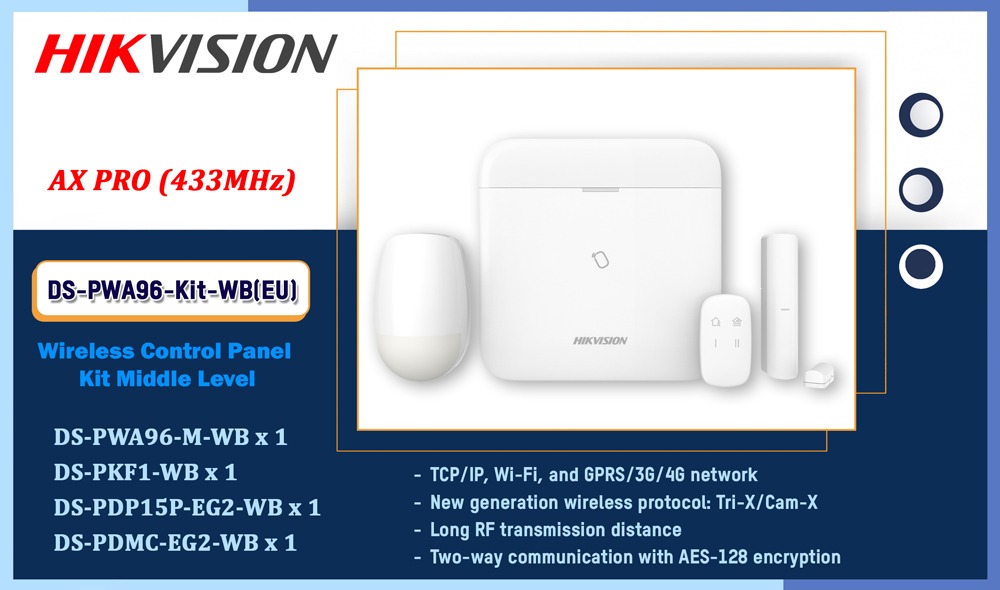

Datasheet: DS-PWA96-Kit-WB
User Manual: DS-PWA96-Kit-WB
Software features
- Tag: 48
- Area: 32
- Zones: 96 (up to 48 PIRCAMs)
- Onboard video clips: 4
- Installer: 1
- User: 46
- Admin: 1
- Voice Prompt: Supported
- Loudspeaker built in: Supported
- Tag reader built in: Supported
- Memory Log stored: 5000
- Programming tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
- Firmware upgrade: APP/Web Portal
- Arm modes: Away/Stay
- Automatic Arm/Disarm Timers: Supported
- Forced Arming with Open Zones: Supported
- Diagnostics via the APP or Web: Supported
- ARC protocol
- SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)
- Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
- Supports video verification and remote control
- User APP for operating: Supported
- Installer APP for programming: Supported
- Web server for maintenance (offline configuration): Supported
Hardware features
- RS232 output: Supported
- SIM slot: Dual
RF transmission
- Two-way Wireless Communication: Support
- RF Frequency: 433Mhz
- Wireless Security: Frequency Hoping 128 AES Encryption
- 3/4G on board: Supported
Display
- LEDs Status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
Electrical characteristics
- Power supply: Built in power supply
- Battery type: Built in on board Battery Li
- Battery life span: Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
Wireless transmission
- Wired network: Supported
- Wi-Fi Standard: Supported
General
- Operation temperature: -10 °C to +55 °C
- Shell material: Plastic
- Dimension(WxHxD): 170.0 mm (6.7″) x 170.0 (6.7\”) mm x 38.6 mm (1.5\”)
- Weight: 557.5 g(19.7 oz)
- Color: white
Device management

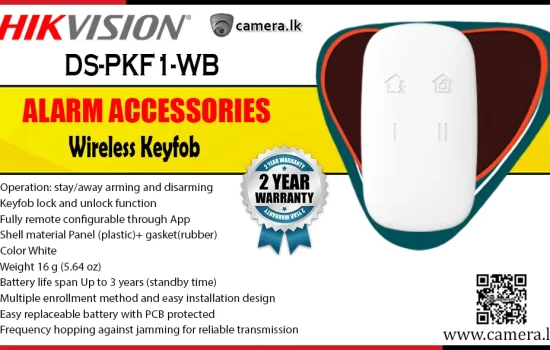

- Keyfob: 48
- Wireless sounder: 6 (3 internal+3 External)
- Keypad: 8 (Including Tag reader)
- Wireless Repeater: 4
- Multi Transmitter: 6
- PIR Cam: Supported
