Description

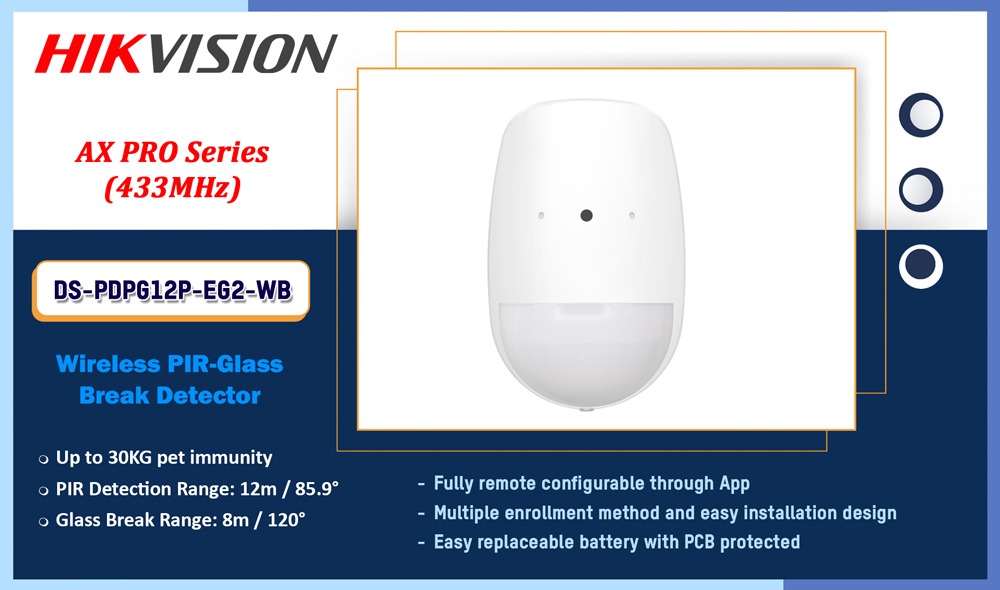

Datasheet: DS-PDPG12P-EG2-WB
User Manual: DS-PDPG12P-EG2-WB
Detection Performance
- Detection Method: Passive Infrared;Acoustic Sensor
- Detection Range: 12m
- Detection Angle: 85.9°
- Detection Zones: 52
- Detectable Speed: 0.3～2m/s
- Pet Immunity: 30Kg
- PIR Sensitivity: Auto,High,Pet
- White Light Filter: 6500lux
- Glass Break Range: 8m
- Glass Type: Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
- Glass Break Sensitivity: 2m,4m,6m,8m
- Glass Thickness: 2.4mm to 6.4mm
- Digital Temperature Compensation: Support
- Glass Size: 0.3m x 0.3m to 3m x 3m
- Creep Zone Protection: Support
Feature
- Digital Processing: Support
- Sealed Optics: Support
- Tamper Protection: Front;Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
Interface
- Power Switch: Power Up Enrolling
- LED Indicator: Green(PIR),Red(BG),Blue(alarm)
Transmission
- Transmission Technology: Tri-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 433MHz
- Transmission Security: AES-128 Encryption
- Transmission Range(Free Space): 1Km
- Frequency Hopping: Support
- Enrolling Method: Power up;Remote ID;QR Code
Electrical Characteristics
- Standard Battery Life: Up to 4 years (standby time)
- Power Supply: Battery Powered
- Battery Type: CR123A × 2
- Typical Voltage: 3V
General
- Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity: 10% to 90%
- Dimension(WxHxD): 65.5mm×103mm×48.5mm
- Weight: 134g
- Mounting Height: 1.8 to 2.4m
- Mounting Method: Wall
- Application Scenario: Indoor
- Bracket: Optional Wall & Ceiling Accessory
