Description

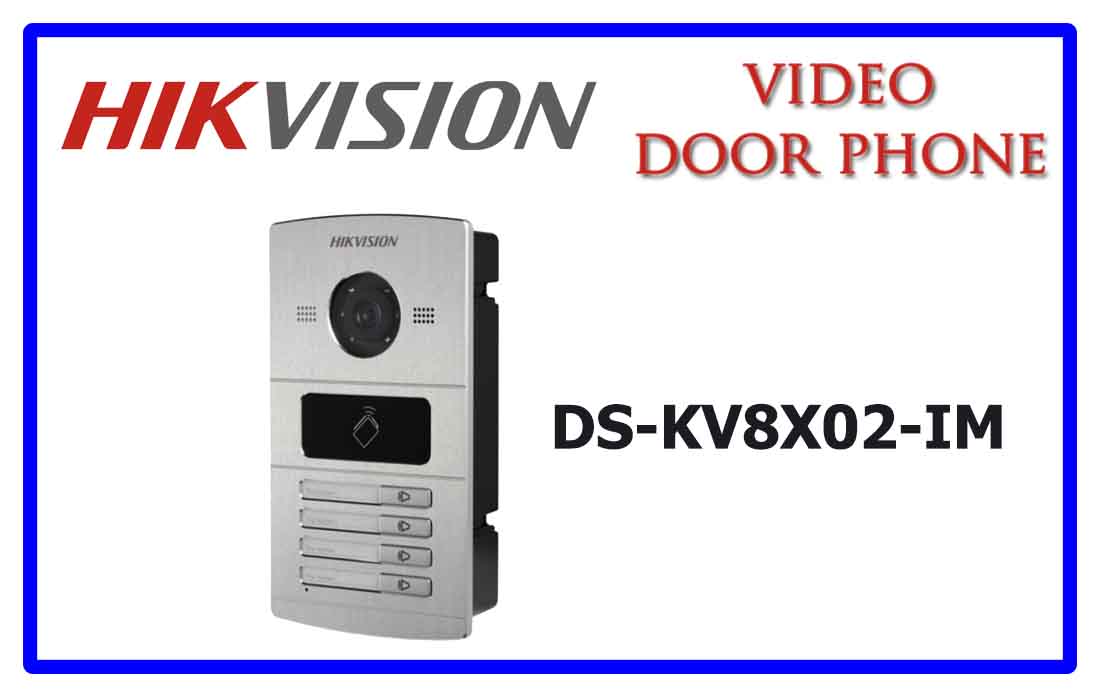

Datasheet: DS-KV8X02-IM
User Manual: DS-KV8X02-IM
| Model | |
|---|---|
| Processor: | High-Performance Embedded SOC Processor |
| Operation System: | Embedded Linux Operation System |
| Camera: | CMOS Low Illumination 1.3 MP HD Colorful Camera |
| Video Compression Standard: | H.264 |
| Resolution: | 1280 x 720 |
| Video frame rate: | 25 fps |
| Audio Input: | Built-in Omnidirectional Microphone |
| Audio Output: | Built-in Loudspeaker |
| Audio Compression Standard: | G.711 U |
| Audio Compression Rate: | 64 Kbps |
| Audio Quality: | Noise Suppression and Echo Cancellation |
| Ethernet: | 10/100 Mbps Self-Adaptive Ethernet |
| Network Protocol: | TCP/IP, RTSP |
| Internal Card Reader: | Built-in IC Card Reader |
| Exit button: | Exit Button for Opening the Door |
| Door Magnetic Detection: | Detects Door Magnetic Status |
| Light Supplement Mode: | IR Supplement |
| Alarm Input: | Door Magnetic Alarm, Tampering Alarm |
| Network Interface: | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| RS-485: | 1 RS-485 Half-Duplex Port |
| I/O Input: | 4 |
| I/O Output: | 1 |
| Indoor Station Access Amount: | 1 |
| Material: | Aluminum Alloy |
| Power Supply: | 12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612) |
| Power Consumption: | ≤12 W |
| Certification: | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |
| Working Temperature: | -40° C to +70° C (-40° F to 158° F) |
| Working Humidity: | 10% to 90% |
| IP Protection Level: | IP65 |
| Dimensions(L × W × H): | 182 mm × 100 mm × 33 mm (7.17″ × 3.94″ × 1.30″) |
