Description

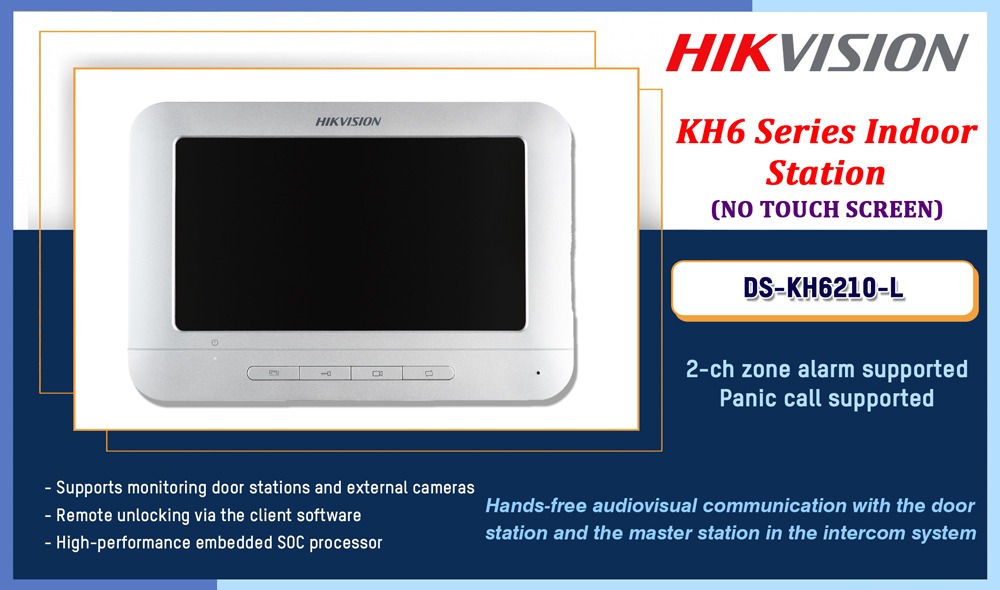

Quick Start Guide: DS-KH6210-L
| Model | DS-KH6210-L |
|---|---|
| Processor: | High-Performance Embedded SOC Processor |
| Operation System: | Embedded Linux Operation System |
| Memory: | 256M |
| Display Screen: | 7-Inch Colorful TFT LCD |
| Display Resolution: | 800 × 480 |
| Operation Method: | Physical Button |
| Operation interface: | Flattened UI Operation Interface |
| Audio Input: | Built-in Omnidirectional Microphone |
| Audio Output: | Built-in Loudspeaker |
| Audio Compression Standard: | G.711 U |
| Audio Compression Rate: | 64 Kbps |
| Audio Quality: | Noise Suppression and Echo Cancellation |
| Ethernet: | 10/100 Mbps Self-Adaptive Ethernet |
| Network Protocol: | TCP/IP, RTSP |
| Alarm Input: | 2-ch Alarm Input Sensor |
| Network Interface: | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| RS-485: | 1 RS-485 Half-Duplex Port |
| I/O Output: | 1 |
| Power Supply: | 12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612) |
| Power Consumption: | ≤10 W |
| Certification: | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |
| Working Temperature: | -10° C to + 55° C (14° F to 131° F) |
| Working Humidity: | 10% to 90% |
| Dimensions(L × W × H): | 217 mm × 142 mm × 26 mm (8.5″ × 5.6″ × 1.0″) |
