Description

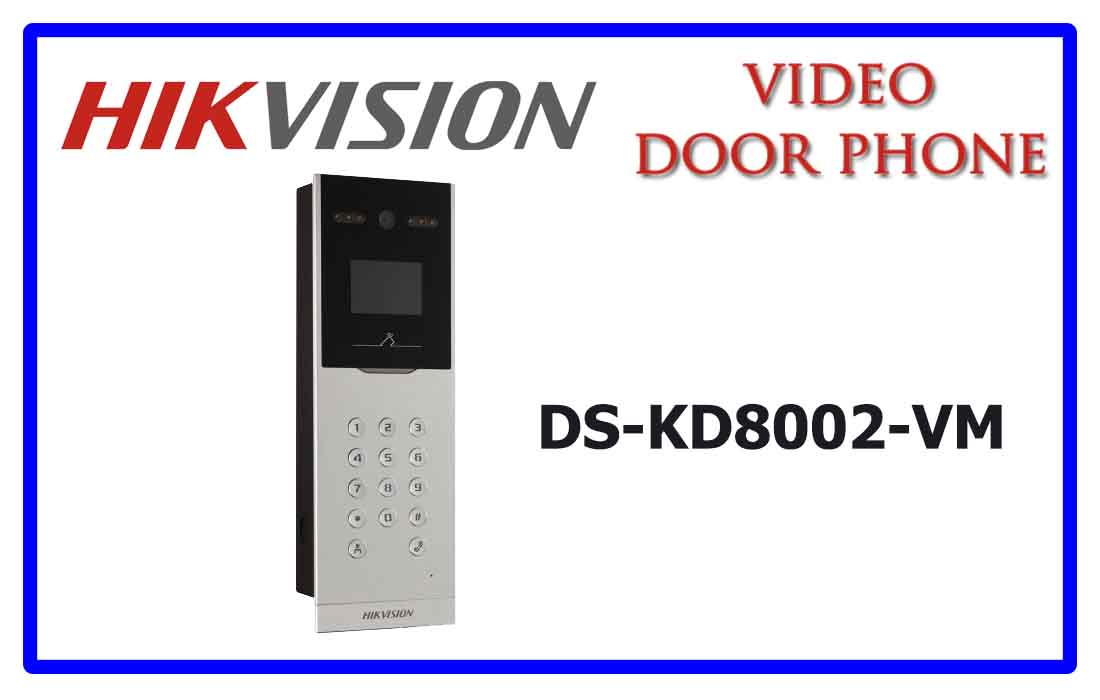

Datasheet: DS-KD8002-VM
User Manual: DS-KD8002-VM
| Model | |
|---|---|
| Processor: | High-Performance Embedded SOC Processor |
| Operation System: | Embedded Linux Operation System |
| Camera: | CMOS Low Illumination 1.3 MP HD Colorful Camera |
| Video Compression Standard: | H.264 |
| Resolution: | 1280 x 720 |
| Video frame rate: | PAL: 25 fps, NTSC: 30 fps |
| Display Screen: | 3.5-Inch Colorful TFT LCD |
| Display Resolution: | 480 × 320 |
| Operation Method: | Physical Keypad |
| Operation interface: | LCD Display, Easy Menu |
| Audio Input: | Built-in Omnidirectional Microphone |
| Audio Output: | Built-in Loudspeaker |
| Audio Compression Standard: | G.711 U |
| Audio Compression Rate: | 64 Kbps |
| Audio Quality: | Noise Suppression and Echo Cancellation |
| Ethernet: | 10/100/1000 Mbps Self-Adaptive Ethernet |
| Network Protocol: | TCP/IP, RTSP |
| Internal Card Reader: | Built-in IC Card Reader |
| External Card Reader: | Wiegand 26, Wiegand 34, or RS-485 IC Reader |
| Door Magnetic Detection: | Detects Door Magnetic Status |
| Light Supplement Mode: | Visible Light Supplement |
| Alarm Input: | Door Magnetic Alarm, Tampering Alarm |
| Network Interface: | 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| RS-485: | 1 RS-485 Half-Duplex Port |
| I/O Input: | 8 |
| I/O Output: | 4 |
| Wiegand: | 1 Wiegand Port for Accessing Wiegand IC Card Reader |
| USB : | 1 USB 2.0, Supporting U-Disk |
| Material: | Aluminum Alloy |
| Power Supply: | 12 VDC |
| Power Consumption: | ≤15 W |
| Certification: | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |
| Working Temperature: | -40° C to +70° C (-40° F to 158° F) |
| Working Humidity: | 10% to 90% |
| IP Protection Level: | IP65 |
| Dimensions(L × W × H): | 418 mm × 145 mm × 61 mm (16.5″ × 5.7″ × 2.4″) |
