Description

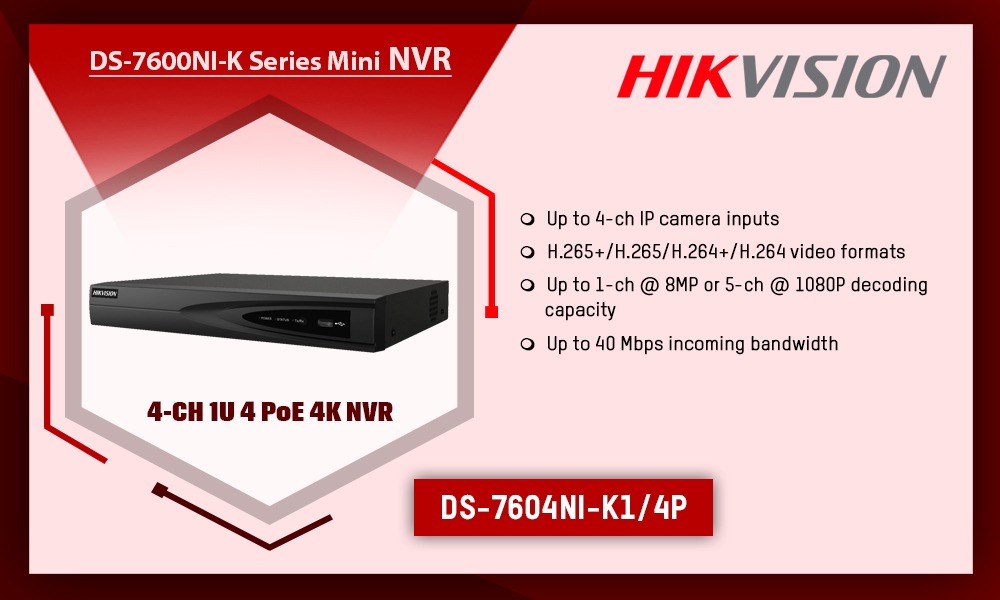

Datasheet: DS-7604NI-K1/4P
User Manual: DS-7604NI-K1/4P
Video And Audio
- IP Video Input: 4-ch
- Incoming Bandwidth: 40 Mbps
- Outgoing Bandwidth: 80 Mbps
- HDMI Output: 4K（4096×2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz
- VGA Output: 1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding
- Format: H.265+/H.265/H.264+/H.264
- Decoding Capability: 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
- Synchronous Playback: 4-ch
- Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network
- Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
- Interface: 4-ch
- Power: ≤ 50 W
- Standard: IEEE 802.3 af/at
RAID
- RAID Type: No
Auxiliary Interface
- SATA: 1
- Capacity: Up to 8TB capacity for each disk
- USB Interface: 2 × USB 2.0
- Alarm In/Out: N/A (4/1 is optional)
General
- Power Supply: 48 VDC, 1.35 A
- Consumption: ≤ 10 W (without enabling PoE)
- Working Temperature: -10 to +55° C (14 to 131° F)
- Working Humidity: 10 to 90 %
- Chassis: 1U
- Dimension (W × D × H): 320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
- Weight: ≤ 1 kg (2.2 lb)
