Description

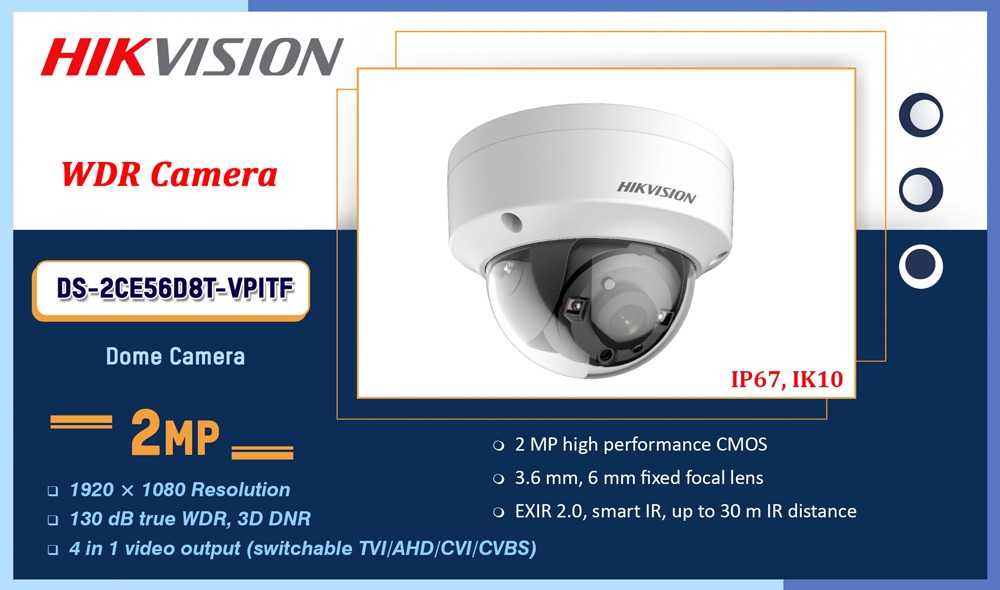

Datasheet: DS-2CE56D8T-VPITF
User Manual: DS-2CE56D8T-VPITF
Camera
- Image Sensor: 2 MP CMOS
- Signal System: PAL/NTSC
- Frame Rate
- PAL: 1080p@25fps
- NTSC: 1080p@30fps
- Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Lens: 2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Horizontal Field Of View: 104° (2.8 mm), 79.1° (3.6 mm), 50.2° (6 mm)
- Lens Mount: M12
- Day & Night: ICR
- WDR (Wide Dynamic Range): ≥ 130 dB
- Angle Adjustment: Pan: 0° to 355°, Tilt:0° to 75°, Rotate: 0° to 355°
Menu
- Image Mode: STD/HIGH-SAT
- AGC: Support
- Day/Night Mode: Auto/Color/BW (Black and White)
- White Balance: ATW/MANUAL
- HLC: Yes
- BLC (Backlight Compensation): Yes
- Language: English
- Functions: Brightness, Sharpness, Mirror, Smart IR, HLC
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- Power Supply: 12 VDC ± 25%
- Power Consumption: Max. 3.4 W
- Protection Level: IP67 IK10
- Material: Metal
- IR Range: Up to 30 m
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Dimensions: Ø 111 mm × 82.4 mm (Ø 4.4″ × 3.2″)
- Weight: Approx. 492 g (1.08 lb.)
