Description

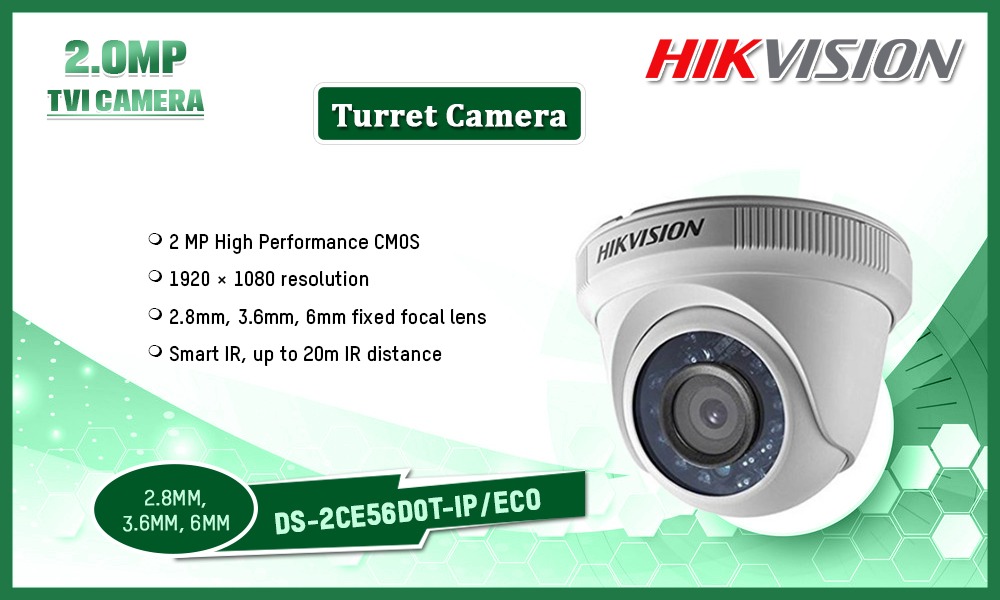

| Model | DS-2CE56D0T-IP/ECO | |
|---|---|---|
| Camera | ||
| WDR (Wide Dynamic Range): | DWDR | |
| Angle Adjustment: | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° | |
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1920(H)*1080(V) | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
|
| Lens: | 2.8 mm, 3.6 mm, 6 mm fixed lens | |
| Lens Mount: | M12 | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | TVI: 1080p@25fps/30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| Menu | ||
| Image Mode: | STD/HIGH-SAT | |
| Noise Reduction: | 2D DNR | |
| Automatic Exposure: | WDR/BLC/HLC/Global | |
| D/N Mode: | Auto/Color/BW (Black and White) | |
| AGC: | Yes | |
| Language: | English | |
| Function: | Brightness, Sharpness, Smart IR | |
| White Balance: | Auto/Manual | |
| Interface | ||
| Video Out: | 1 HD analog output | |
| General | ||
| Material: | Plastic | |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±25% | |
| Power Consumption: | Max. 2.2 W | |
| IR Range: | Up to 20m | |
| Communication : | HIKVISION-C | |
| Dimension: | Φ89.9 × 70.1 mm(Φ3.54″ × 2.76″) | |
| Weight: | 130 g (0.29 lb.) | |
