Description
DS-2CE56C2T-VFIR3 – Product Description
DS-2CE56C2T-VFIR3 – User Manual

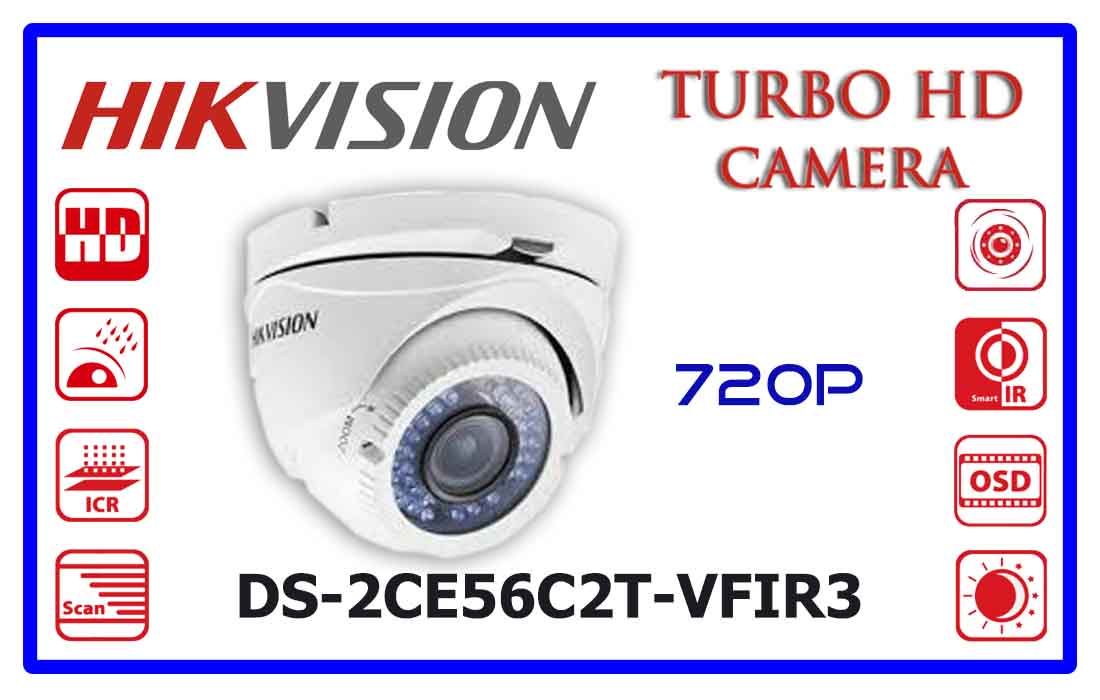

| Model | DS-2CE56C2T-VFIR3 |
|---|---|
| Image Sensor: | 1.3MP CMOS Image Sensor |
| Effective Pixels: | 1280 (H) × 960 (V) |
| Min. Illumination: | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Lens: | 2.8-12mm @ F1.4 Angle of view: 97° – 30.4° |
| Lens Mount: | φ14 |
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360° |
| Day& Night: | IR cut filter with auto switch |
| Video Frame Rate: | 720p@25fps/720p@30fps |
| HD Video Output: | 1 Analog HD output |
| Synchronization: | Internal Synchronization |
| S/N Ratio: | More than 62 dB |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 V DC±10% |
| Power Consumption: | Max. 5W |
| Weather Proof: | IP66 |
| IR Range: | Up to 40m |
| Dimension: | Φ 130.54 × 102.4 mm (Φ 5.1” × 4”) |
| Weight: | 560g (1.24 Ibs) |
