Description

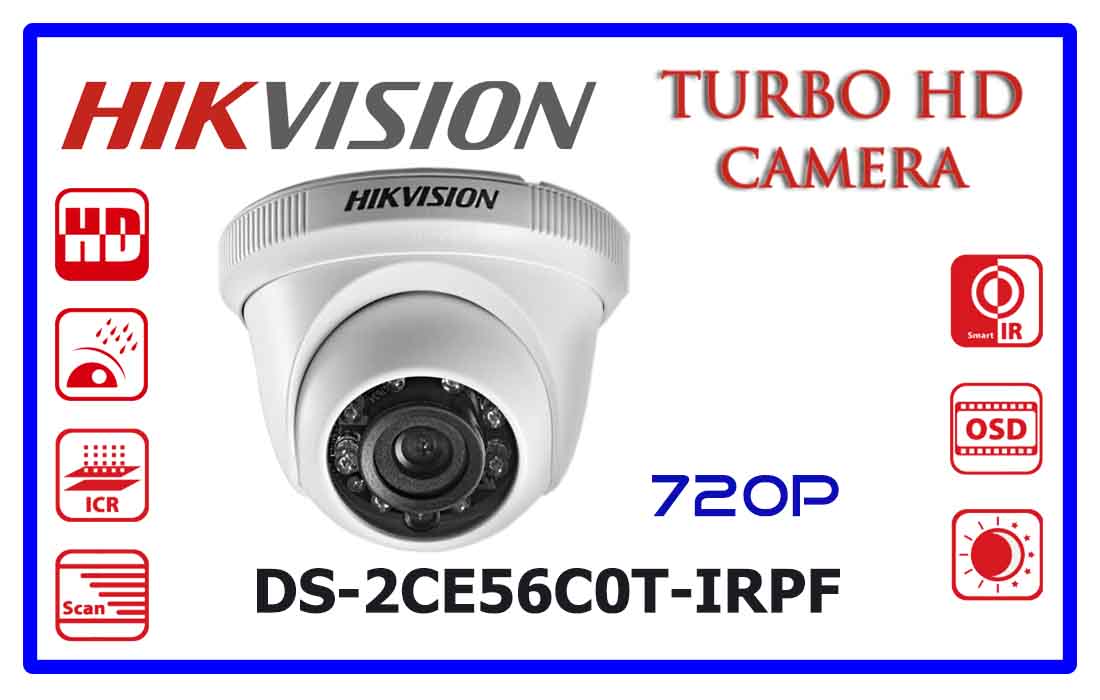

Datasheet: DS-2CE56C0T-IRPF
User Manual: DS-2CE56C0T-IRPF
| Image Sensor: | 1MP CMOS Image Sensor |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 1296(H)x732(V) |
| Min. Illumination: | 0.1 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens: | 3.6mm (2.8mm, 6mm optional), Angle of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm) |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360° |
| Day& Night: | IR cut filter with auto switch |
| Video Frame Rate: | 720p@25fps/720p@30fps |
| HD Video Output: | 1 Analog HD output |
| Synchronization: | Internal Synchronization |
| S/N Ratio: | More than 62 dB |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 VDC±15% |
| Power Consumption: | Max. 4W |
| IR Range: | Up to 20m |
| Dimension: | Φ89.5 × 69.8 mm(Φ3.52” × 2.75”) |
| Weight: | 250 g |
