Description

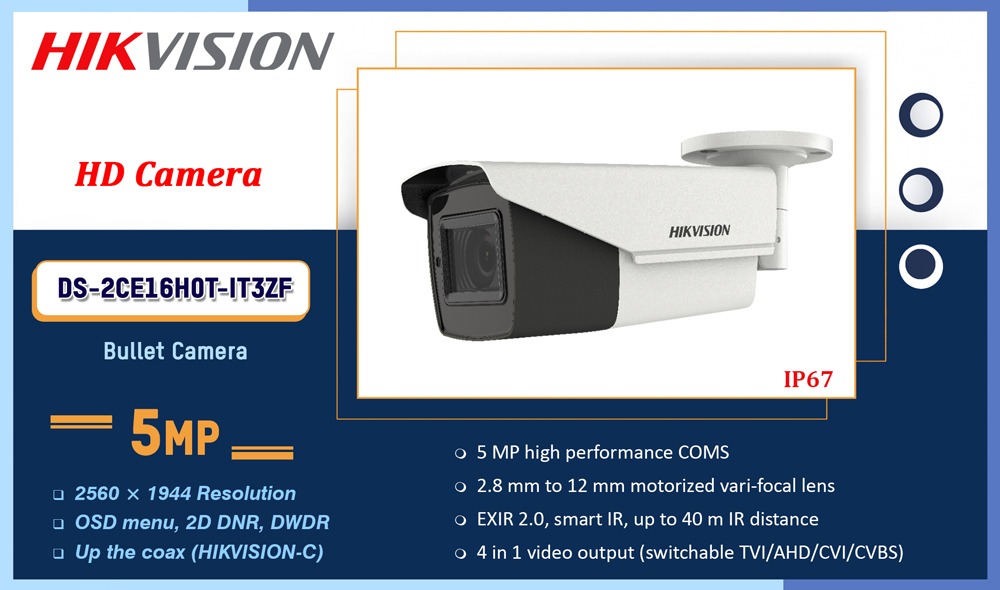

Datasheet: DS-2CE16H0T-IT3ZF
User Manual: DS-2CE16H0T-IT3ZF
Camera
- Image Sensor: 5 MP CMOS image sensor
- Max. Resolution: 2560 (H) × 1944 (V)
- Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50, 000 s, NTSC: 1/30 s to 1/50, 000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
Lens
- Focal Length & FOV: 95.7° to 29.1°
- Lens Mount: Φ 14
- Image Settings: Brightness, Sharpness, DNR, Mirror, Smart IR
- Frame Rate: PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps,NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): DWDR
- Image Enhancement: BLC
- White Balance: ATW/MWB
- AGC: Support
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material: Front cover: Metal, Main body: Plastic
- Dimension: 84.5 mm × 92 mm × 255.1 mm (3.33″ × 3.62″ × 10″)
- Weight: Approx. 665 g (1.47 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Power Supply12 VDC ±15%, 24 VAC ±15%
- Consumption: Max. 6.3 W
- IR Range: Up to 40 m
Approval
- Protection: IP67
