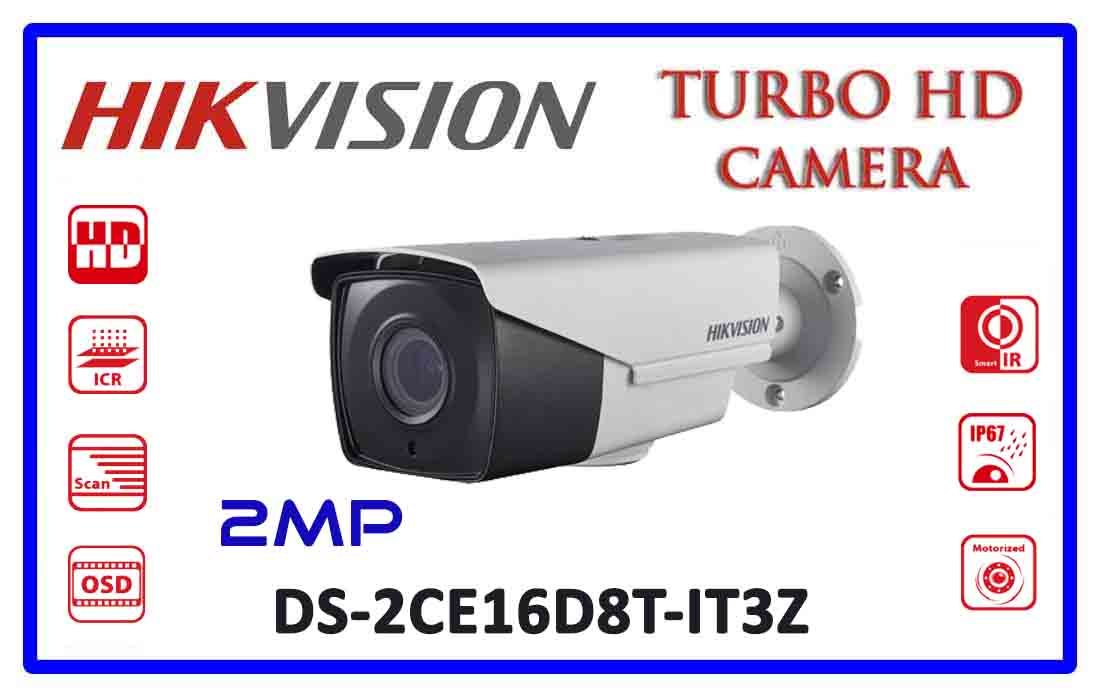

DS-2CE16D8T-IT3Z
You are here: Home \ Products \ DS-2CE16D8T-IT3Z

DS-2CE16D8T-IT3Z

logo-2
• 2 Megapixel high-performance CMOS

• Analog HD output, up to 1080P resolution

• 2.8-12mm motorized vari-focal lens

• True Day/Night

• OSD menu, DNR, Smart IR

• True WDR, up to 120dB

• EXIR 2.0, up to 40m IR distance

• IP67

• Up the Coax(HIKVISION-C)

Categories: , , ,

Description

Product Description :DS-2CE16D8T-IT3Z
User Manual : DS-2CE16D8T-IT3Z

Model DS-2CE16D8T-IT3Z
Image Sensor: 2MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1920(H)*1080(V)
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens Mount: φ14
Adjustment Range: Pan: 0 – 360°, Tilt: 0 – 90°, Rotation: 0 – 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120dB
Video Frame Rate: 1080p@25fps/1080p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
Up the Coax: Support
Auto White Balance: Auto/MWB
BLC: Support
AGC: Support
Language: English/Chinese
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±25%
-A: 12 VDC±25%, 24 VDC±25%
Weather Proof: IP67
IR Range: Up to 40m
Communication : Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension: 92mm×84.8mm×269.6mm (3.62”×3.34”×3.34”)
Weight: Approx. 900g ( 1.98lb)
