Description

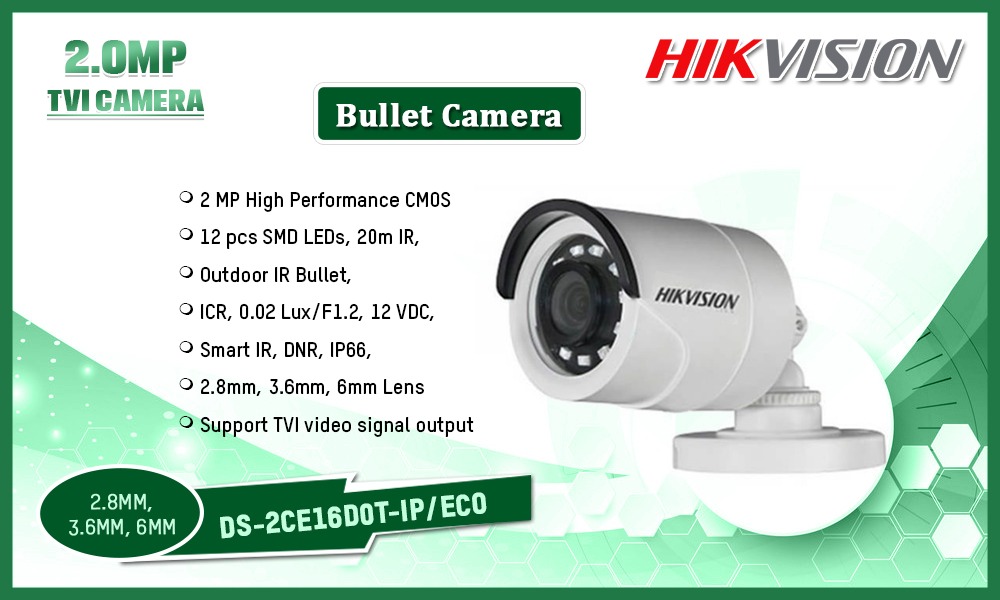

Camera
- Lens: Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm)
- Lens Mount: M12
- Day & Night: ICR
- Synchronization: Internal synchronization
- Angle Adjustment: Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360°
- Image Sensor: 2MP CMOS Image Sensor
- Signal System: PAL/NTSC
- Frame Rate: PAL: 1080p@25fps NTSC: 1080p@30fps
- Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
- Shutter Time: 1/25(1/30)s to 1/50,000s
Menu
- AGC: Low/middle/high
- Day/Night Mode: Smart/color/BW(Black and White)
- Backlight Compensation: Yes
- DWDR (Digital Wide Dynamic Range): Yes
- Language: English, Chinese
- Functions: Brightness, Sharpness, DNR, Mirror
General
- Operating Condition: -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
- Power Supply: 12 VDC±15%
- Power Consumption Max: 4W
- Material: Plastic
- IR Range: Up to 20 m
- Dimensions: Φ 70 mm × 154 mm (Φ 2.76″ × 6.06″)
- Weight: 300 g (0.66 lb.)
- Ingress Protection: IP66
