Description

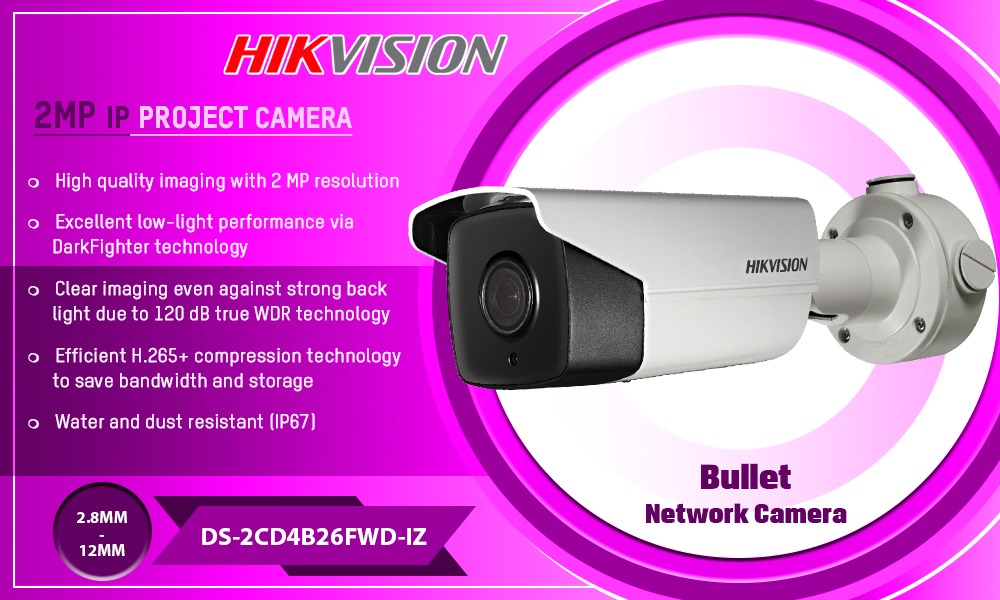

Datasheet: DS-2CD4B26FWD-IZ
User Manual: DS-2CD4B26FWD-IZ
Camera
- Image Sensor: 1/1.8” Progressive Scan CMOS
- Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON), 0.0027 Lux @ (F1.4, AGC ON), 0 Lux with IR,B/W: 0.0002 Lux @ (F1.2, AGC ON), 0.00027 Lux @ (F1.4, AGC ON), 0 Lux with IR”
- Shutter Speed: 1 s – 1/100,000 s
- Slow Shutter: Support
- Day &Night: IR Cut Filter
- Wide Dynamic Range: 120dB
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
- DNR: 3D DNR
Lens
- Lens: 2.8 – 12 mm F1.4, horizontal angle of view 90.1° – 31°
- Auto-Iris: DC drive
- Lens Mount: Φ14
Illuminator
- IR Range: 10 m to 30 m
Video
- Max. Resolution: 1920 × 1080
- Main Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
- 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub Stream
- 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
- 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
- Third Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
- 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
- Video Compression: Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Video Bit Rate: 32 Kbps – 16 Mbps
Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
- Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Environment Noise Filtering: Support
- Audio Sampling Rate: Max. 48 kHz
Smart Feature-Set
- Behavior Analysis: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
- Region Of Interest: Support 4 fixed region for each stream, and dynamic face tracking
- Image Enhancement: BLC/HLC/3D DNR/Defog/EIS
- Setting: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
- Day/Night Switch: Auto/Schedule/Triggered by Alarm In
- Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Distortion Correction: Support
Network
- Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
4G
- Standard: ONVIF (PROFILE S, PROFILE G), ISAPI
Interface
- Video Output: 1Vp-p composite output (75 Ω/BNC)
- On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Compression Standard
- H.264+: Support
- H.265+: Support
Smart Feature-Set
- Exception Detection: Scene change detection
- Line Crossing Detection: Cross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
- Intrusion Detection: Enter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
- Region Entrance Detection: Enter a pre-defined virtual region from the outside place
- Region Exit Detection: Exit from a pre-defined virtual region
- Object Removal Detection: Objects removed from the pre-defined region, such as the exhibits on display.
- Unattended Baggage Detection: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
- Recognition: Face detection
General
- General Function: One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
- Reset: Yes
- Startup And Operating Conditions: -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
- Power Supply: 12 V DC ± 20%, PoE (802.3at, class 4)
- Dimensions: 348.38 × 114.18 ×111.73 mm (13.72″ × 4.5″ × 4.4″)
- Weight
- Camera: 1900 g (4.19 lb.)
- With package: 2100 g (4.63 lb.)
- Power Consumption And Current: 12 V DC ± 20%: Max. 11.25 W/0.94 A, PoE (802.3at): Max. 15 W/0.31 A
- Interface Protection: IP67
