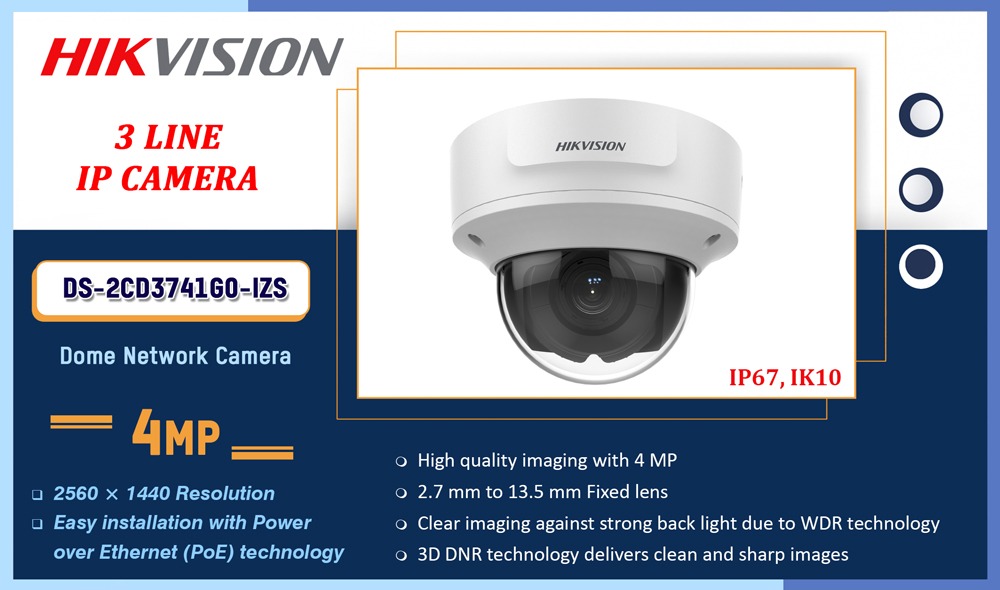

DS-2CD3741G0-IZS

Description

Datasheet: DS-2CD3741G0-IZS

Camera

• Image Sensor: 1/3″ Progressive Scan CMOS
• Min. Illumination: Color: 0.018Lux @ (F1.6, AGC ON)
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120dB
• Day & Night: ICR Cut
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°
• Power-Off Memory: Yes

Lens

• Focus: Semi-auto, manual
• Lens Type & FOV: 2.7 to 13.5 mm, horizontal FOV 97° to 30°, vertical FOV 52° to 17°, diagonal FOV 114° to 34°
• Aperture: F1.6
• Lens Mount: Φ14
• Fixed Aperture: Yes

Illuminator

• IR Range: 40 m
• Wavelength: 850nm
• Smart Supplement Light: Yes

Video

• Max. Resolution: 2560 × 1440
• Main Stream
  • 50Hz: 20fps (2560 × 1440) 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
  • 60Hz: 20fps (2560 × 1440) 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream
  • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream
  • 50Hz: 1fps (1280 × 720, 640 × 360)
  • 60Hz: 1fps (1280 × 720, 640 × 360)
• Video Compression
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Stream Type: Main stream/sub-stream/third stream
• Scalable Video Coding (SVC): H.265 and H.264 support
• Region Of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
• Audio Type: Mono sound

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
• Network Storage
  • microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR).
  • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11


• Day/Night Switch: Day, Night, Auto, Schedule, Triggered by Alarm In
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR: ≥ 52 dB

Interface

• Alarm: 1 input, 1 output (max. 12 VDC, 30mA)
• Audio: 1 input (line in) two-core terminal block; 1 output (line out) two-core terminal block
• Video Output: 1Vp-p composite output(75Ω/CVBS)
• On-Board Storage: Built-in micro SD slot, up to 256 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet

Event

• Smart Event
  • Line crossing detection, up to 1 line configurable
  • Intrusion detection, up to 1 region configurable

Intelligent (Traditional Algorithm)

• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

General

• Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
• Dual Backup: Yes
• Firmware Version: 5.5.85
• Web Client Language: English, Russian, Portuguese, Spanish, Turkish, Italian, French, Polish
• General Function: Anti- flicker, heartbeat, mirror, privacy masks, flash log
• Software Reset: Yes
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, PoE: (802.3af, class 3)
• Power Consumption And Current: 12 VDC, 0.83 A, max. 10 W, PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12 W
• Power Interface: Φ5.5 mm coaxial power plug
• Material: Metal front cover and base
• Camera Dimension: Φ141 × 99.9 mm (5.5″ × 3.9″)
• Package Dimension: 140 × 140 × 154 mm (5.5″ × 5.5″ × 6.1″)
• Camera Weight: 830 g (1.8 lb.)
• With Package Weight: 1130 g (2.5 lb.)

Approval

• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: Ingression protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
