DS-2CD3327G2-LSU

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

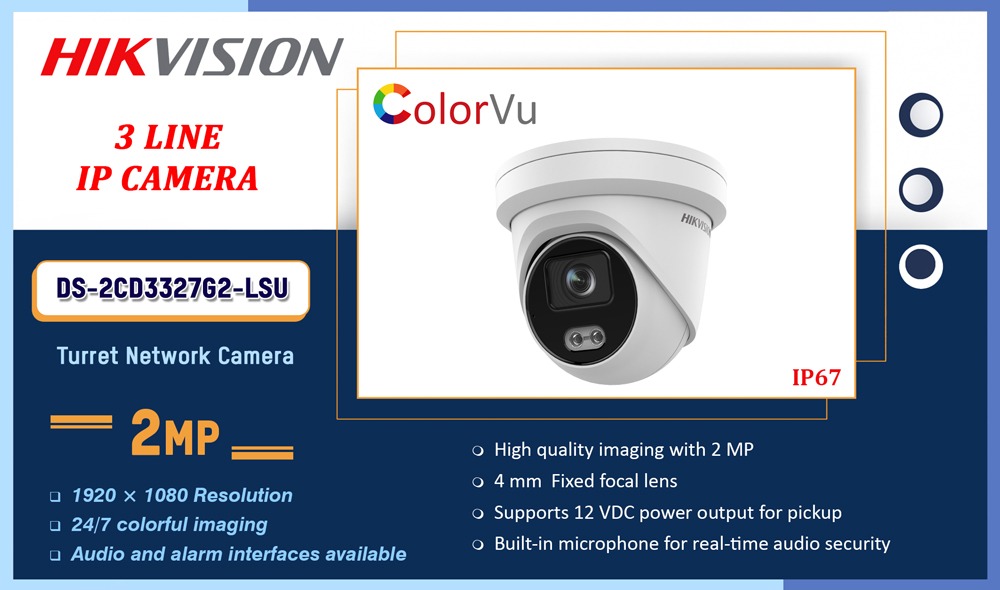

  • 2 MP ColorVu Fixed Turret Network Camera
  • 24/7 Colorful imaging
  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Supports 12 VDC power output for pickup
  • Audio and alarm interfaces available
  • Built-in microphone for real-time audio security
  • Water and dust resistant (IP67)
Categories: , , ,

Description


Datasheet: DS-2CD3327G2-LSU


User Manual: DS-2CD3327G2-LSU

Camera
  • Image Sensor: 1/1.8″ Progressive Scan CMOS
  • Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Slow Shutter: Yes
  • P/N: P/N
  • Wide Dynamic Range: 120 dB
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
  • Lens Mount: M16
  • Focal Length & FOV
    • 4 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 113°
  • Aperture: F1.0
DORI
  • DORI
    • 4 mm: D: 51 m, O: 20 m, R: 10 m, I: 5 m
Illuminator
  • White Light Range: Warm white LEDs (3000 K)
    • Up to 40 m
  • Smart Supplement Light: Yes
Video
  • Max. Resolution: 2592 × 1944
  • Main Stream
    • 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
    • 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream
    • 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
    • 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream
    • 50 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
    • 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
  • Fourth Stream
    • 50 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
    • 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

      *Fourth stream is supported under certain settings.

  • Video Compression
    • Main stream: H.265/H.264/H.264+/H.265+
    • Sub-stream: H.265/H.264/MJPEG
    • Third stream: H.265/H.264
    • Fourth stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • H.264+: Main stream supports
  • H.265+: Main stream supports
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region Of Interest (ROI): 5 fixed regions for main stream and sub-stream
  • E-PTZ: Support Preset and Patrol settings

    *Only the fourth stream supports this function.

Audio
  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Bit Rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)/16-64Kbps(AAC)
Network
  • Smooth Streaming: Yes
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, SFTP, ISUP, ARP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption
  • Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR), FTP ANR
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser
    • Plug-in required live view: IE 10, IE 11
    • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
    • Local service: Chrome 57.0+, Firefox 52.0+
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Target Cropping: Yes
  • Image Enhancement: BLC, HLC, 3D DNR, EIS, Defog
  • Image Parameters Switch: Yes
  • Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
  • Alarm: 1 input, 1 output (max. 12 VDC, 30 mA)
  • Built-In Microphone: Yes
  • Audio
    • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
    • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
  • On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Hardware Reset: Yes
  • Power Output: 12 VDC, max. 100 mA (supported by all power supply types)
Event
  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection, video quality diagnosis
Deep Learning Function
  • Face Capture: Yes
  • Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection
General
  • Linkage Method: Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, FTP, Email
  • Web Client Language: 33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • General Function: Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
  • Software Reset: Yes
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Power Supply: 12 VDC ± 25%, reverse polarity protection

    PoE: 802.3af, Class 3

  • Power Consumption And Current: 12 VDC, 0.55 A, max. 6.6 W

    PoE (802.3af, 36 V to 57 V), 0.22 A to 0.13 A, max. 7.6 W

  • Power Interface: Ø5.5 mm coaxial power plug
  • Camera Dimension: Ø138.3 × 125.2 mm (Ø5.4″ ×4.9″)
  • Package Dimension: 170 × 170 × 150 mm (6.7″ × 6.7″ × 5.9″)
  • Camera Weight: Approx. 800 g (1.8 lb.)
  • With Package Weight: Approx. 1145 g (2.5 lb.)
Approval
  • EMC
    • FCC SDoC (47 CFR Part 15, Subpart B);
    • CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
    • RCM (AS/NZS CISPR 32: 2015);
    • IC VoC (ICES-003: Issue 6, 2016);
    • KC (KN 32: 2015, KN 35: 2015)
  • Safety
    • UL (UL 60950-1);
    • CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
    • CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
    • BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
    • LOA (IEC/EN 60950-1)
  • Environment
    • CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
    • Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013)
