Description

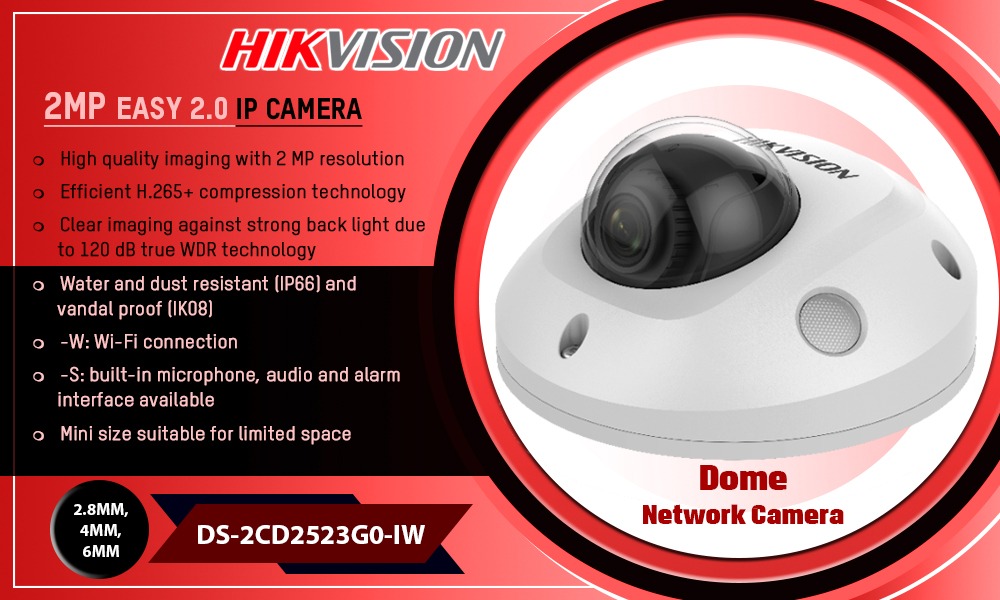

Datasheet: DS-2CD2523G0-IW
User Manual: DS-2CD2523G0-IW
Camera
- Image Sensor: 1/2.7″ Progressive Scan CMOS
- Min. Illumination: Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR on
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Wide Dynamic Range: 120 dB
- Day & Night: IR Cut Filter
- Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
- Lens Type: 2.8, 4, 6 mm
- FOV
- 2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
- 4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
- 6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
- Aperture: F2.0
- Lens Mount: M12
Illuminator
- IR Range: Up to 10 m
- Wavelength: 850 nm
Video
- Max. Resolution: 1920 × 1080
- Main Stream
- 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
- 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
- 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream
- 50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
- 60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
- Video Compression
- Main stream: H.265/H.264
- Sub-stream: H.265/H.264 /MJPEG
- Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Main Profile/High Profile
- H.265 Type: Main Profile
- H.264+: Main stream supports
- H.265+: Main stream supports
- Scalable Video Coding (SVC): Support H.264 and H.265 encoding
Network
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host: Up to 32 users. 3 levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network Storage: Support Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
- Client
- Wired network: Hik-Connect, iVMS-4200, Hik-Central
- Wi-Fi: iVMS-4200, Hik-Central
*Wi-Fi connection with Hik-Connect directly is not possible.
- Web Browser
- Plug-in required live view: IE 8+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
- Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
Wi-Fi
- Encryption Mode: WPA, WPA2
- Wi-Fi Protocol: IEEE 802.11b/g/n
- Frequency Range: 2.412 GHz to 2.4835 GHz
- Channel Bandwidth: 20 M/40 M
- Wireless Range: Up to 50 m (The performance varies based on actual environment)
- Transfer Rate
- 11b: 11 Mbps
- 11g: 54 Mbps
- 11n: up to 150 Mbps
- Image Enhancement: BLC/3D DNR/HLC
- Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Interface
- On-Board Storage: Built-in MicroSD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset: Yes
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Event
- Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event: Line crossing detection, intrusion detection, face detection
- Face Detection: Yes
General
- Linkage Method
- Trigger recording: memory card, network storage, pre-record and post-record
- captured pictures uploading: FTP, HTTP, NAS, Email
- Trigger notification: HTTP, ISAPI, alarm output , Email
- Firmware Version: V5.6.5
- Web Client Language: 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) - General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%
PoE (802.3af, class 3) - Power Consumption And Current: 12 VDC, 0.7 A, max. 8.5 W, Ø5.5mm coaxial plug power
PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W - Camera Dimension: Ø120 mm × 67.4 mm (Ø4.7″ × 2.7″)
- Camera Weight: approx. 400 g (0.9 lb.)
Approval
- Protection: Ingress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)
