Description

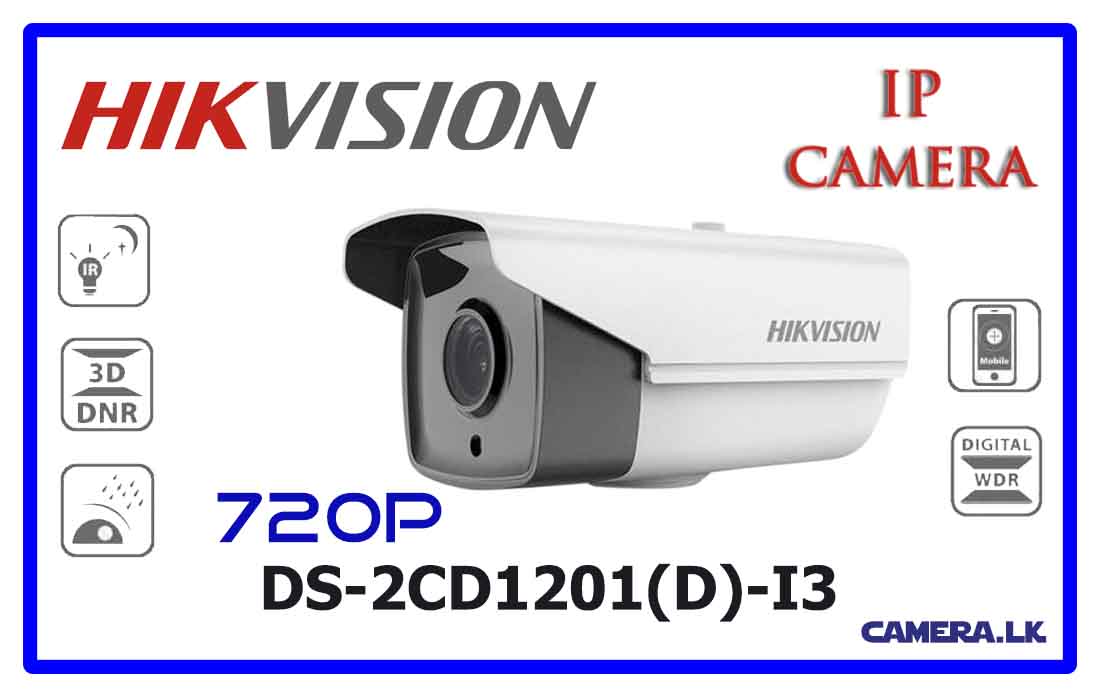

| Model | DS-2CD1201(D)-I3 |
|---|---|
| Image Sensor: | 1/4″ Progressive Scan CMOS |
| Min. Illumination: | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter time: | 1/3 s to 1/10,000 s |
| Lens: | 4mm, horizontal view angle: 73.1° (6mm,8mm,12mm optional) |
| Lens Mount: | M12 |
| Day& Night: | IR cut filter with auto switch |
| DNR | 3D DNR (Digital Noise Reduction) |
| Wide Dynamic Range: | Digital WDR |
| Digital noise reduction: | 3D DNR |
| Video Compression: | H.264 / MJPEG |
| H.264 Type | Baseline Profile/Main Profile |
| Video bit rate: | 332 Kbps to 8 Mbps |
| Max. Image Resolution: | 1280×720 |
| Main Stream | 50Hz: 1280×720@25fps, 60Hz: 1280×720@30fps |
| Sub Stream | 50Hz: 704×576@25fps, 60Hz: 704×576@30fps |
| Others | Mirror, BLC (area configurable), Brightness, Contrast, Saturation |
| Alarms | Motion Detection, Dynamic Analysis, Video Tampering, Network Disconnected, IP Address Conflicted |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: | Anti-Flicker, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark |
| Standard: | ONVIF,PSIA,CGI,ISAPI |
| Communication Interface: | 1 RJ45 10M/100M Ethernet port |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | DC12V ± 10%, PoE (802.3af) |
| Power Consumption: | -I3: Max. 3.5W; -I5: Max. 4.5W Max. 9W with pan and tilt |
| IR Range: | 30 meters; -I5: 50 meters |
| Dimensions: | 147.5mm×78.2mm×92.9mm (5.8″×3.1″×3.7″) |
| Weight: | 350g (0.8 lb) |
