Description

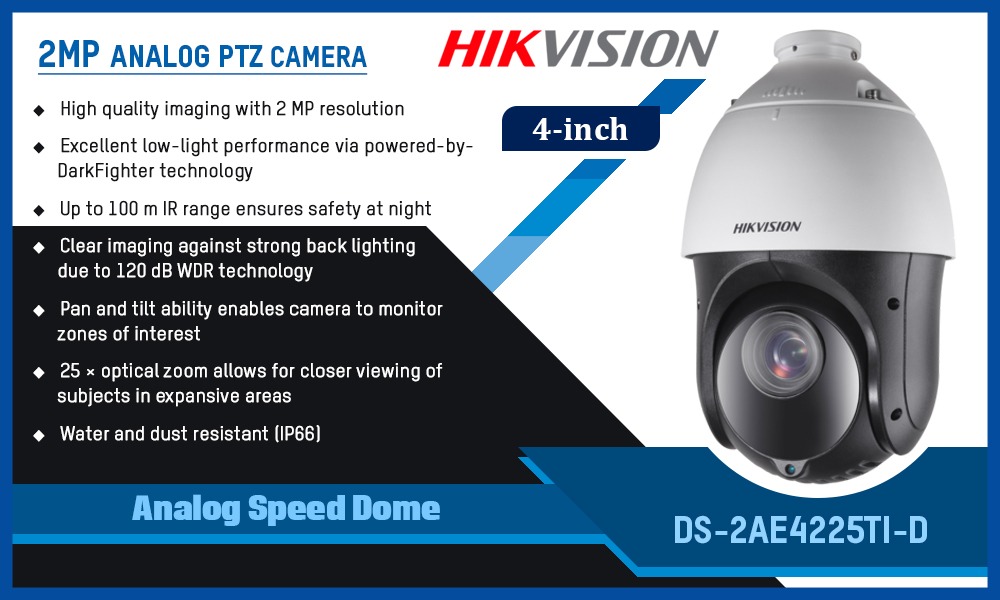

Datasheet: DS-2AE4225TI-D
User Manual: DS-2AE4225TI-D
Camera
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
- Shutter Speed
- PAL: 1/1 s to 1/10,000 s
- NTSC: 1/1 s to 1/10,000 s
- Day & Night: IR cut filter
- Zoom: 25× optical, 16 × digital
Lens
- Focal Length: 4.8 mm to 120 mm, 25 × optical
- FOV: Horizontal FOV: 57.6° to 2.5° (wide to tele)
- Focus: Auto, semi-auto, manual
- Aperture: F1.6 to F3.5
- Zoom Speed: Approx. 3.2 s (optical, wide to tele)
Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 100 m
PTZ
- Movement Range (Pan): 360° endless
- Movement Range (Tilt): -15° to 90° (auto flip)
- Pan Speed
- manual speed: 0.1° to 80°/s
- Pan preset speed: 80°/s
- Tilt Speed
- manual speed: 0.1° to 80°/s
- Tilt preset speed: 80°/s
- Proportional Pan: Rotation speed can be adjusted automatically according to zoom multiples
- Presets: 256
- Patrol Scan: 10 patrols, up to 32 presets for each patrol
- Pattern Scan: 5 patterns, record time over 10 minutes for each scan
- Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status Display: Yes
- Scheduled Task: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-Off Memory: Yes
Video
- Frame Rate
- 50 Hz: 25 fps @(1920 × 1080)
- 60 Hz: 30 fps @(1920 × 1080)
Network
- Protocols: UTC protocol (or HIKVISION-C protocol in previous DVR)
- Image Settings: AGC, white balance
- Wide Dynamic Range (WDR): ≥ 120 dB
- Image Stabilization: EIS
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 8 programmable privacy masks
- Regional Focus: Yes
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
- RS-485
- Half-duplex mode
- Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
General
- Powerச 12 VDC, max. 20 W (IR: 7 W)
- Dimensionச Ø 164.5 × 295 mm (Ø 6.47″ × 11.61″)
- Operating Condition: -30° C to 65° C (-22° F to 149° F). Humidity 90% or less
- Language: English
Approval
- Protection: IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
