Description

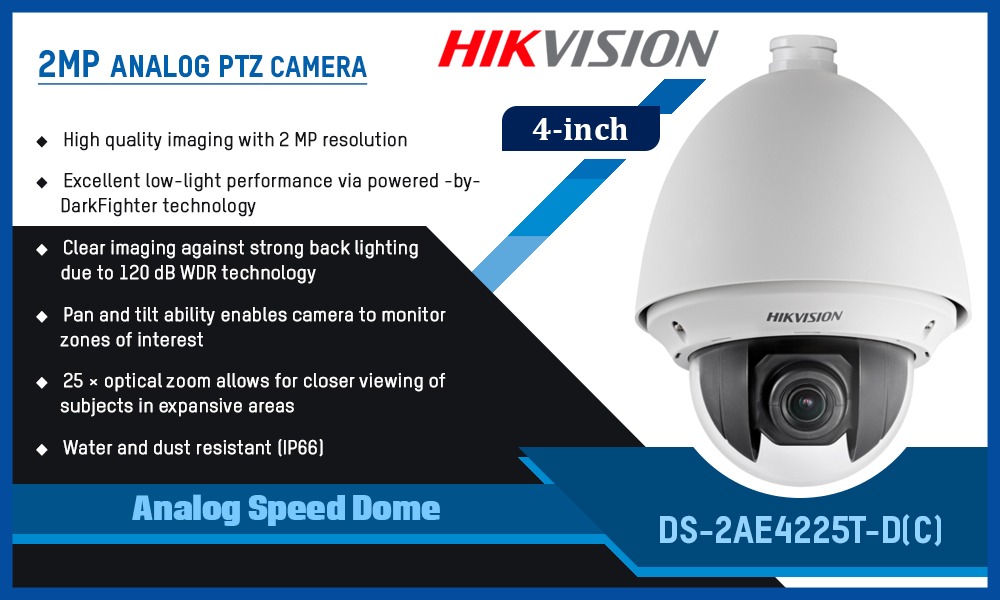

| Model | DS-2AE4225T-D(C) |
|---|---|
Camera |
|
| Image Sensor: | 1/2.8″ Progressive Scan CMOS |
| Effective Pixels: | 1920(H)x1080(V) |
| Signal System: | PAL/NTSC |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) |
| White Balance: | AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR |
| AGC: | Auto/Manual |
| BLC: | ON/OFF |
| HLC: | Support |
| WDR: | ≥ 120 dB |
| Anti-shake: | On / Off |
| Shutter Time: | PAL: 1-1/10,000s NTSC: 1-1/10,000s |
| Day& Night: | ICR |
| Digital Zoom: | 16x |
| Privacy Mask: | 8 programmable privacy masks |
| Auto Focus: | Auto / Semi-automatic / Manual |
Lens |
|
| Focal Length: | 4.8 mm to 120 mm, 25× Optical |
| Zoom Speed: | Approx. 3.6 s (optical, wide to tele) |
| Field of View: | Horizontal field of view: 57.6° to 2.5° (wide to tele) Vertical field of view: 34.4° to 1.4° (wide to tele) Diagonal field of view: 64.5° to 2.9° (wide-tele) |
| Minimum Working Distance: | 10 mm to 1500 mm (wide to tele) |
| Aperture Range: | F 1.6 to F 3.5 |
Pan & Tilt |
|
| Pan Range: | 360°endless |
| Pan Speed: | manual speed: 0.1° to 100°/s preset speed: 100°/s |
| Tilt Range: | -5°~90° (Auto Flip ) |
| Tilt Speed: | manual speed: 0.1° to 80°/s preset speed: 80°/s |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | 256 |
| Patrol: | 10 patrols, up to 32 presets per patrol |
| Pattern: | 5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory: | Support |
| Park Action: | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
| PTZ Position Display: | ON/OFF |
Alarm |
|
| Alarm Input: | 2 |
| Alarm Output: | 1 |
Input & Output |
|
| Video Output: | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| UTC function: | UTC protocol (or HIKVISION-C protocol in previous DVR) |
General |
|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Language: | English |
| Power Supply: | 12V DC |
| Power Consumption: | Max. 16 W |
| Working Temperature/Humidity: | -30 °C-65°C(-22°F-149°F) 90% or less |
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Dimensions: | Ø 179.4 × 239.5 mm (Ø 7.1″ × 9.4″)”) |
| Weight (approx.): | 2 kg (4.41 Ib.) |
