Description

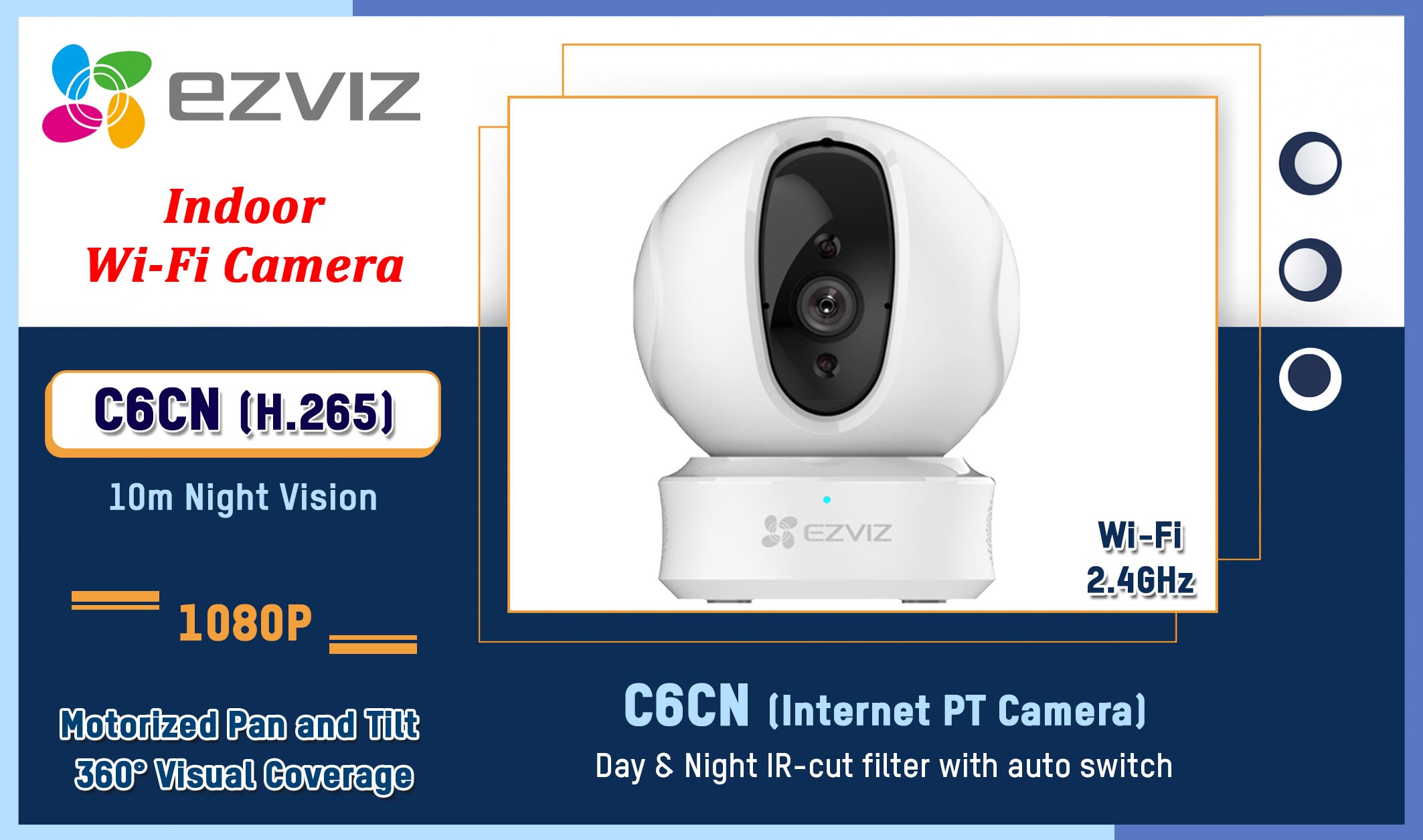

| Model | C6CN (H.265) | |
|---|---|---|
| Camera | ||
| Image Sensor | 1/3″ Progressive Scan CMOS | |
| Shutter Speed | Self-adaptive shutter | |
| Lens | 4mm@ F1.6, view angle: 81° horizontal, 42° vertical, 94° diagonal | |
| PT Angle | Pan: 340° , Tilt: 120° | |
| Minimum Illumination | 0.5 lux @(F1.6, AGC ON), 0 lux with IR | |
| Lens Mount | M12 | |
| Day & Night | IR-cut filter with auto switch | |
| DNR | 3D DNR | |
| WDR | True-WDR | |
| BLC | Supports | |
| Night Vision | 10 m (33 ft.) | |
| Video & Audio | ||
| Max. Resolution | 1920 × 1080 | |
| Frame Rate | Max:25fps; Self-adaptive during network transmission | |
| Video Compression | H.265 | |
| H.264 Type | Base Profile | |
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate. | |
| Audio Bit Rate | Self-adaptive | |
| Max. Bitrate | 2 Mbps | |
| Network | ||
| Wi-Fi Standard | IEEE802.11 b/ g/ n | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | |
| Channel Bandwidth | Supports 20MHz | |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps | |
| Wi-Fi Pairing | AP pairing | |
| Protocol | EZVIZ Cloud proprietary protocol | |
| Interface Protocol | EZVIZ Cloud proprietary protocol | |
| Wired Network | RJ45 × 1(10M/100M adaptive Ethernet port) | |
| Features | ||
| Smart Alarm | AI Person Detection | |
| Customized Activity Zones | Supports | |
| Two-Way Talk | Supports | |
| General Features | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark | |
| Storage | ||
| Local Storage | Micro SD card slot (Max. 256 GB) | |
| Cloud Storage | EZVIZ Cloud Storage | |
| General | ||
| Operating Conditions | -10ºC ~ 45ºC ( 14°F to 113 °F ), Humidity 95% or less (non-condensing) | |
| Power Supply | DC 5V/1A | |
| Power Consumption | Max. 5W | |
| Product Dimensions | 88 × 88 × 111.9 mm (3.46 × 3.46 × 4.41 inch) | |
| Packaging Dimensions | 103 × 103 × 186mm (4.06 × 4.06 × 7.32 inch) | |
| Product Weight | 255 g (0.56 lbs) (9 oz) | |
| Packaging Weight | 513 g (1.13 lbs) (18 oz) | |
| In the box | ||
| In the box | C6CN Camera; Base; Power Adapter; 3 m (9.8 ft) Power Cable; Screw Kit; Drill Template; Quick Start Guide | |
| Certifications | ||
| Certifications | FCC / UL / CE / WEEE/REACH / ROHS | |
