Description

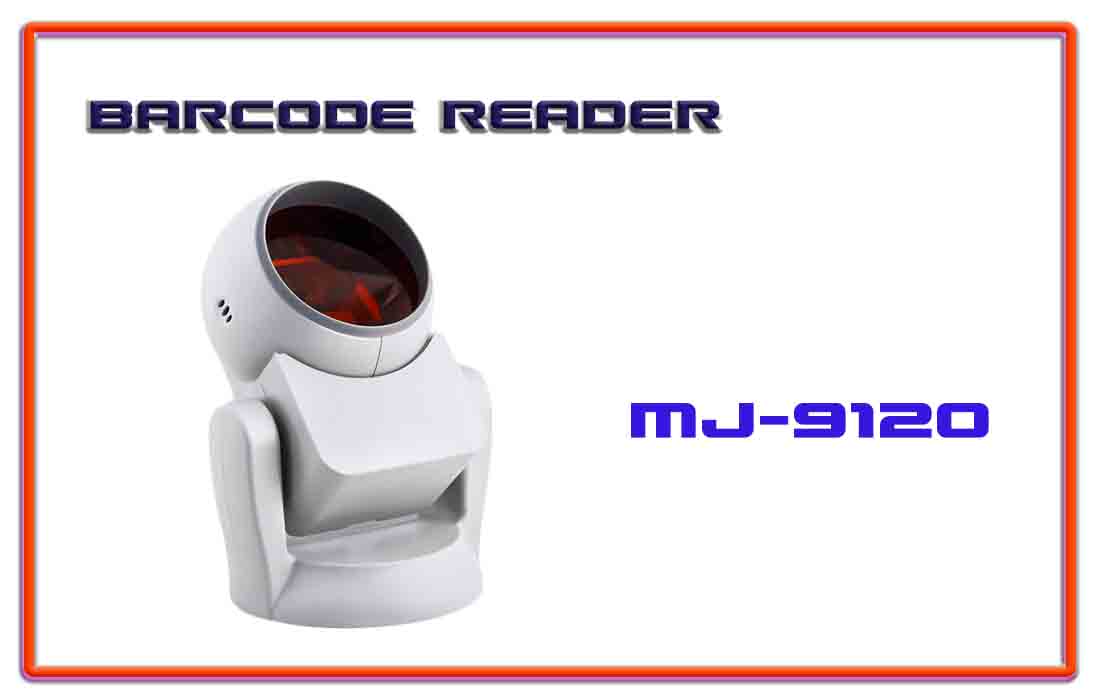

| Model | MJ 9120 |
|---|---|
| Light Source | 675nm+10nm laser |
| Power | 0.681W |
| Scan Depth | 0mm-215mm |
| Scan width | 60mm @ face: 105mm @ 216mm |
| Scan rate | 1200 scan/sec |
| Resolution | 5.2 mil |
| Scanning lines | 20 lines |
| Scanning mode | 5 group 4 parallel lines |
| Interface | Rs232 , PC keyboard wedge , Light Pen Emulation , Stand-Alone Keyboard , OCIA , IBM 468X/469X |
| Contrast | 35% minimum |
| Reading characters capability | Maximum 80 characters |
| Scanning angle | Tilt 360, Elevation 60, oblique 60 |
| Buzzer | 7 mode or mute |
| Indicator status | Green = preparing to scan ,Red =scan and decode successfully |
| Height | 150mm |
| Width | Base: 125mm laser head: 90mm |
| Depth | 110mm |
| Weight | 350g |
| Cable | Standard 2.1m straight. 2.7m straight for choice |
| Voltage | 5VDC+0.25V |
| Power | 1.1W typical @ SVDC |
| Quiescent current | 120mA typical @5VDC |
| Working current | 220mA |
| DC power | Class 2: 5.0 VDC @ 650mA |
| Laser level | CDRH; ClassII ;EN60825-1; 1994/A11; 1996Class1 |
| EMC | FCC ClassB |
| Working temperature | 0C to 40C |
| Storing temperature | -40C t0 -60C |
| Humidity | 5% to 95%(non-condensing) |
