Description
FEATURES

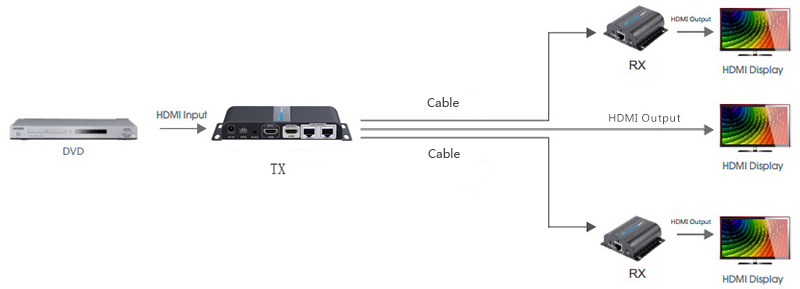

1. Distribute 1 HDMI source to 2 HD displays over network cable simultaneously.
2. Support one HDMI Loop-out.
3. Compatible with CAT6/6a/7 network cables.
4. The transmission distance is 40m/131ft.
5. The Highest resolution is up to 1920×1080@60Hz.
6. Support 20~60Hz IR pass back.
7. Support EDID.
8. Support power from transmitter to receiver unit over the CAT6 cable.
9. Plug and play.
10. Wall-mounted function, easy installation.
| Model | LKV712Pro |
|---|---|
| HDMI signal | HDMI1.3, Com atible with HDCP1.2 |
| Support resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Transmit distance | Full HD resolution 1080p@60Hz up to 40 meters via CAT6 cable |
| IR signal | Support 20~60kHz IR device |
| EDID | Support EDID setting function |
| Working temperature | 0℃～60℃ |
| Power supply | DC5V/2A |
| Power Consumption | <10W |
| Dimension | TX: 157.8(L) x 62.0(W) x 21.6(H) mm RX: 71.6×66.6×22.6mm |
| Color | Black |
