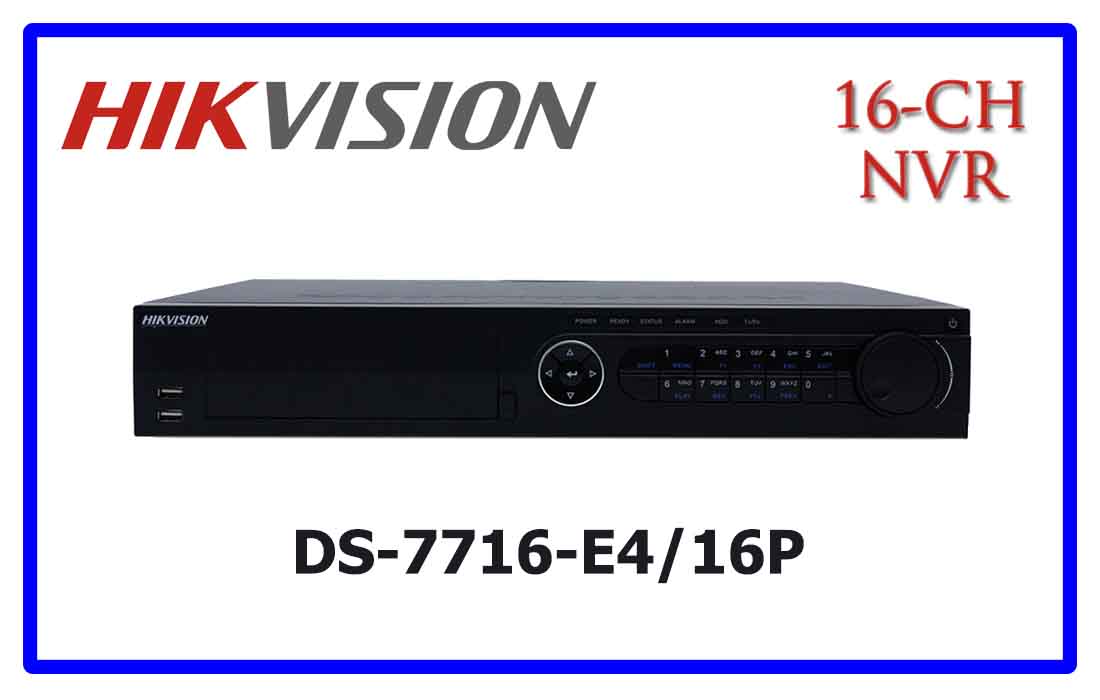

DS-7716-E4/16P
You are here: Home \ Products \ DS-7716-E4/16P

DS-7716-E4/16P

logo-2
Third-party network cameras supported
Up to 6 Megapixels resolution recording
HDMI and VGA output at up to 1920×1080P resolution
8/16/32-ch network cameras can be connected with 80M/160M/160M incoming bandwidth
Up to 4 SATA interfaces
Plug & Play with up to 16 independent PoE network interfaces
Support network detection, including network delay, packet loss, etc

Categories: , ,

Description

Datasheet – DS-7716-E4/16P

User Manual – DS-7716-E4/16P

Model DS-7716-E4/16P
IP video input: 16-ch
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth: 160Mbps
Outgoing bandwidth: 80Mbps
Remote connection: 128
HDMI/VGA output: 1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
1024 × 768 /60Hz
Recording Resolution: 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate: Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
Audio Output: 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback: 16-ch
Live view / Playback: 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: 16-ch@4CIF, 12-ch@720P,
6-ch@1080P
SATA: 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs
Capacity: Up to 6TB capacity for each HDD
Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface: Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm In: 16-ch
Alarm Out: 4-ch
Interface: 16 independent 100 Mbps PoE network interfaces
Max. Power: 200W
Supported Standard: AF and AT
Power Supply: 100~240VAC
Consumption(without hard disk and POE): ≤ 20W
Working Temperature: -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: 10 % ~ 90 %
Chassis: 19-inch rack-mounted 1.5U chassis
Dimensions: 445 × 390 × 70mm (17.5 ×15.3 × 2.8 inch)
Weight(without HDD): ≤ 4 Kg (8.82 lb)
