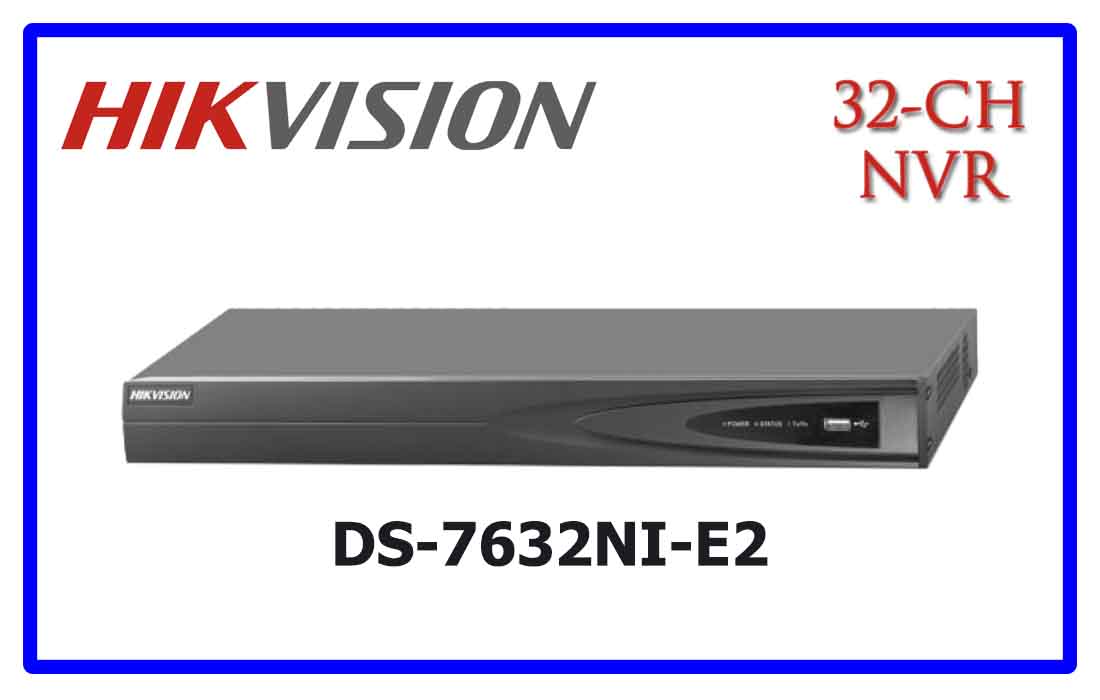

DS-7632NI-E2
You are here: Home \ Products \ DS-7632NI-E2

DS-7632NI-E2

logo-2
Third-party network cameras supported
Up to 6 Megapixels resolution recording
HDMI and VGA output at up to 1920×1080P resolution
4/8/16-ch network cameras can be connected with 40M/80M/160M incoming bandwidth
Up to 2 SATA interfaces
Support network detection, including network delay, packet loss, etc.

Categories: , ,

Description

DS-7632NI-E2 – Product Description

DS-7632NI-E2 – User Manual

Model DS-7632NI-E2
IP video input: 32-ch
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth: 160Mbps
Outgoing bandwidth: 80Mbps
Remote connection: 128
HDMI/VGA output: 1-ch, resolution:
1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Recording Resolution: 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate: Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
Audio Output: 1-ch, RCA (Linear, 1kΩ)
Live view / Playback: 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: 16-ch@4CIF, 12-ch@720P,
6-ch@1080P
SATA: 2 SATA interfaces for 2 HDDs
Capacity: Up to 4TB for each disk
Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface: 1 × USB 2.0 and 1 × USB 3.0
Power Supply: 12V DC
Consumption(without hard disk and POE): ≤ 10W
Working Temperature: -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: 10 % ~ 90 %
Chassis: 380 chassis
Dimensions: 380 × 290 × 48mm (15.0 ×11.4 × 1.9 inch)
Weight(without HDD): ≤ 1 kg
Every piece of security system equipment we carry has been fully tested to ensure our customers receive the best quality, performance and reliability. We are authorized dealers for all the security camera system products you see here, which allows us to offer the best pricing and an exceptional level of customer services. Our Customer support is unmatched with our 1 year warranty and lifetime technical support.
