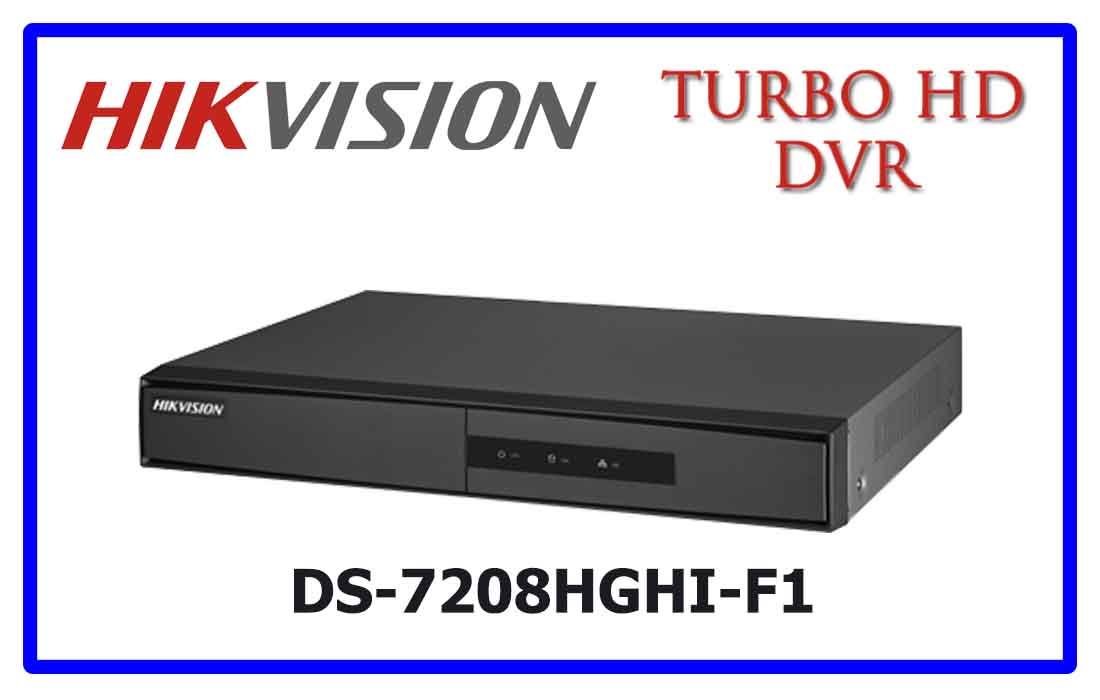

DS-7208HGHI-F1

logo-2
H.264 /H.264+& Dual-stream video compression
Support both HD-TVI /analog and AHD cameras with adaptive access
Full channel recording at up to 1080P lite resolution
HDMI and VGA output at up to 1920×1080P resolution
Long transmission distance over coax cable
Support  4/8/16-ch synchronous playback at 720P resolution

Categories: , , ,

Description

DS-7208HGHI-F1 – Production Description

DS-7208HGHI-F1 – User Manual

Model DS-7208HGHI-F1
Audio Input: 1-ch
Video Compression: H.264,H.264+
Analog and HD-TVI video input: 8-ch BNC interface (1.0Vp-p, 75 Ω)
Supported camera types: Support HDTVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz,
Support AHD input: 720P/25Hz, 720P/30Hz,
support CVBS input
IP Video Input: 2-ch Up to 2MP resolution
Video Input Interface: BNC (1.0 Vp-p, 75Ω)
Audio Compression: G.711u
Audio Input Interface: RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution: When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF;
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate: Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Video Bit Rate: 32 Kbps ~ 4 Mbps
Stream Type: Video/Video&Audio
Audio Output: 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Dual Stream: Support
Playback Resolution: 1080p lite/720p/WD1/4CIF/VGA/CIF
Synchronous Playback: 8-ch
Remote connections: 128
Network protocols: TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS,
NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Interface Type: 1 SATA Interface
Capacity: Up to 6 TB capacity for each disk
Network Interface: 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: 2 USB 2.0 Interfaces
Power Supply: 12V DC
Consumption: ≤ 12W(without hard disks)
Working Temperature: -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity: 10% ~ 90%
Chassis: 1U chassis
Dimensions: 260 × 222 × 45mm (10.2 × 8.7 × 1.8 inch)
Weight: ≤ 1 Kg (2.2 lb) (without hard disks)
