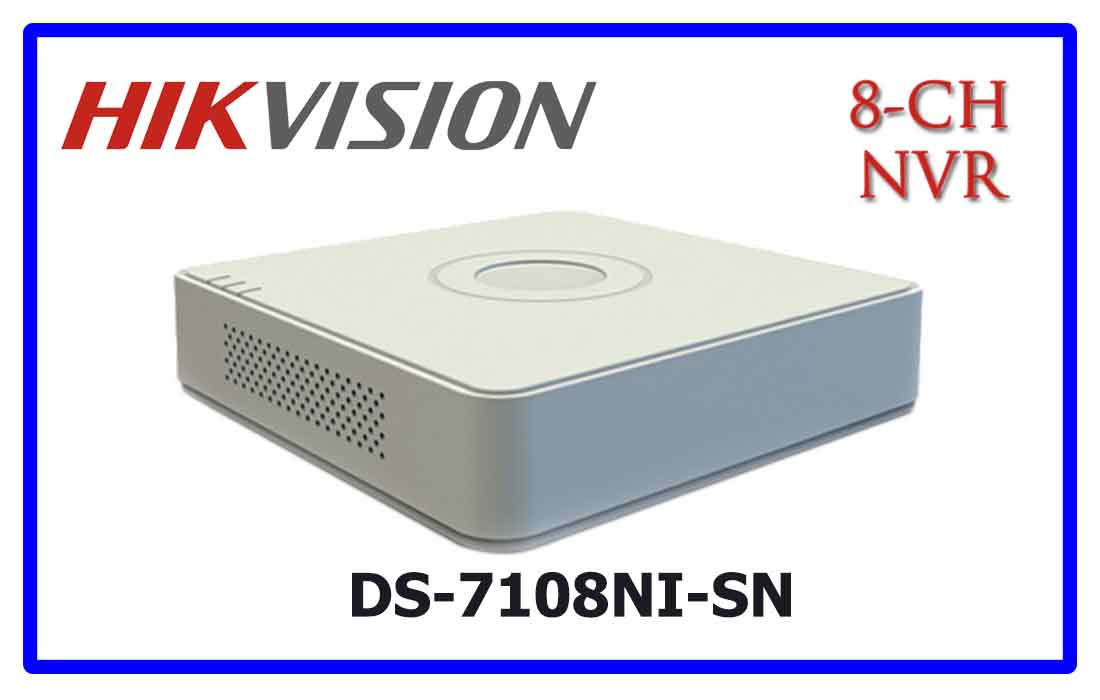

DS-7108NI-SN
You are here: Home \ Products \ DS-7108NI-SN

DS-7108NI-SN

logo-2
Third-party network cameras supported
Up to 2 Megapixels resolution recording
HDMI and VGA output at up to 1920*1080P resolution
HDD quota and group management
4/8 independent network interfaces for built-in switch (DS-7104/08/16NI-SN/N)

Categories: , ,

Description

Datasheet – DS-7108NI-SN

User Manual – DS-7108NI-SN

Model DS-7108NI-SN
IP video input: 8-ch
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth: 50Mbps
Outgoing bandwidth: 40Mbps
Remote connection: 128
HDMI/VGA output: 1-ch, resolution:
1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Audio Output: 1-ch, RCA (Linear, 1kΩ)
Live view / Playback: 1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Capability: 4-ch@720P, 2-ch@1080P
SATA: 1 SATA interface for 1 HDD
Capacity: Up to 4TB for each disk
Built-in switch network interface: 8 independent 10 /100 Mbps Ethernet interfaces
Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface: 2, USB2.0
Power Supply: 12V DC
Consumption(without hard disk and POE): ≤ 10 W
Working Temperature: -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: 10 % ~ 90 %
Chassis: 1U chassis
Dimensions: 285 × 210 × 45 mm
Weight(without HDD): ≤ 1 Kg
Every piece of security system equipment we carry has been fully tested to ensure our customers receive the best quality, performance and reliability. We are authorized dealers for all the security camera system products you see here, which allows us to offer the best pricing and an exceptional level of customer services. Our Customer support is unmatched with our 1 year warranty and lifetime technical support.
