PIR Detection; 11M Detection range
Ultra low light; 0.005lux
White light alarming (-L models)
New Profile; New naming rules

Categories: , , ,


Product Description : DS-2CE71D8T-PIRL

User Manual : DS-2CE71D8T-PIRL

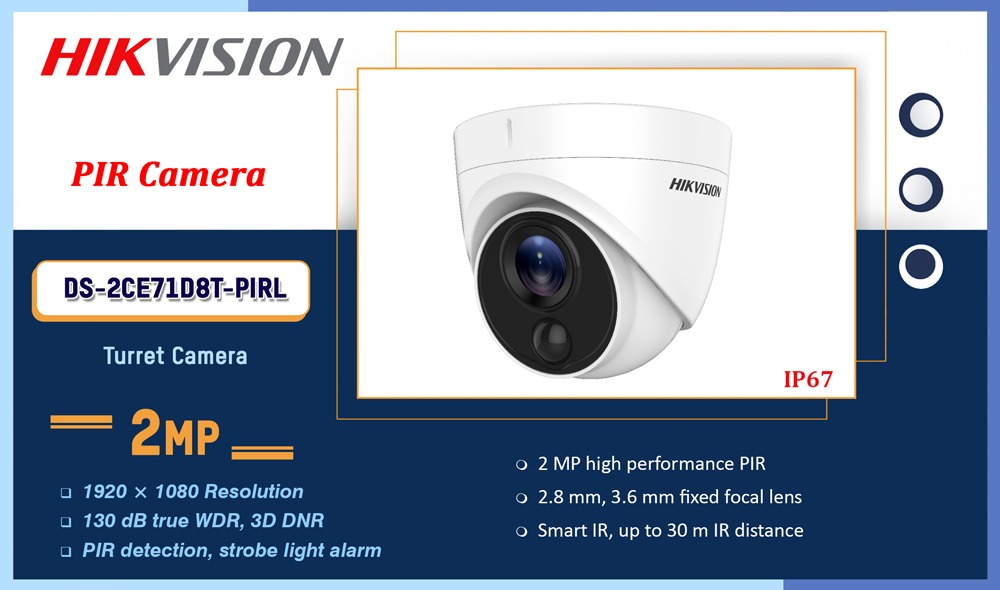

Model DS-2CE71D8T-PIRL
Slow Shutter: Max. 16 times
Angle Adjustment: Pan: 0°to 360°, Tilt: 0°to 180°, Rotate: 0°to 360°
WDR (Wide Dynamic Range): > 120 dB
Image Sensor: 2.0 megapixel progressive scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens: 2.8 mm, 3.6 mm fixed focal lens
Day& Night: IR cut filter
Horizontal Resolution: 1920 (H) × 1080 (V)
Synchronization: Internal Synchronization
Horizontal Field of View: 103.5°(2.8 mm), 82.6°(3.6 mm)
White Light: Alarm/Off
Backlight Compensation: WDR/BLC/OFF
3D DNR (Digital Noise Reduction): Level 1 to 10
D/N Mode: Auto/Color/BW (Black and White)
Auto White Balance: ATW/MANUAL
Private Mask: ON/OFF, 4 programmable privacy masks
Motion Detection: 4 programmable motion areas
AGC: Yes
Language: English/Chinese
Video Out: 1 HD analog output
Visual Alarm: Yes
Ingress Protection: IP67
Material: Enclosure: Plastic
Main body: Metal
Mounting base: Plastic
PIR Range: Angle: 110°, Range:11 m
Power Supply: 12 VDC±25%
Power Consumption: Max. 4.5 W
IR Range: Up to 20m
Communication : Up the coax, Protocol: HIKVISION-C (TVI output)
Dimension: Ø 109.8 mm × 89.75 mm (Ø 4.32″ × 3.53″ )
Weight: Approx. 310 g (0.68 lb.)
