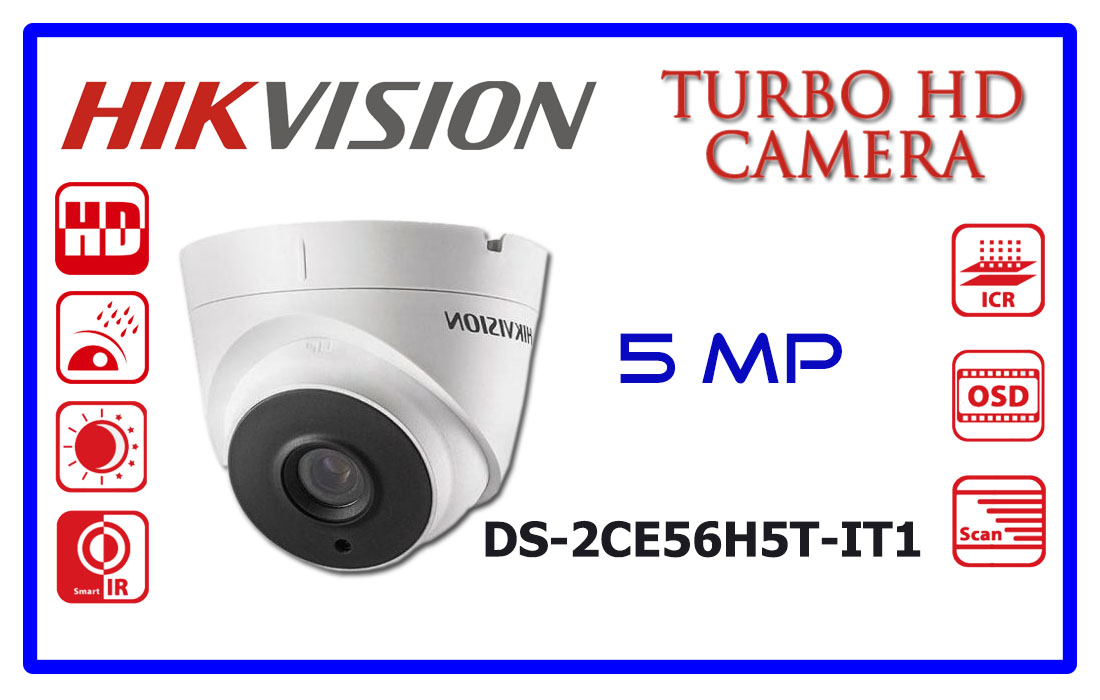

DS-2CE56H5T-IT1
You are here: Home \ Products \ DS-2CE56H5T-IT1

DS-2CE56H5T-IT1

logo-2
•   5 Megapixel high-performance CMOS
•   Analog HD output, up to 5MP resolution
•   True Day/Night
•  OSD menu, DNR, Smart IR
•  EXIR technology, up to 20/40m IR distance
•  IP67 weatherproof
•  Up the Coax(HIKVISION-C)

Categories: , , ,

Description

<a href=”http://www.colombocctv.lk/wp-content/uploads/2017/10/DS-2CE56H5T-IT1-DATASHEET.pdf” target=”_blank” rel=”noopener”>DS-2CE56H5T-IT1 – Product Description</a>

<table class=”TFtable” border=”0″ width=”770″ cellspacing=”0″ cellpadding=”0″>
<tbody>
<tr>
<th style=”width: 25%;”>Model</th>
<th style=”width: 75%;”>DS-2CE56H5T-IT1</th>
</tr>
<tr>
<td class=”td” align=”left”>Min. Illumination:</td>
<td class=”td2″ align=”left”>Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR</td>
</tr>
<tr>
<td class=”td” align=”left”>Shutter Time:</td>
<td class=”td2″ align=”left”>1/25(1/30) s to 1/15,000 s</td>
</tr>
<tr>
<td class=”td” align=”left”>Lens:</td>
<td class=”td2″ align=”left”>2.8 mm, 3.6 mm, 6 mm fixed focal Lens</td>
</tr>
<tr>
<td class=”td” align=”left”>Lens Mount:</td>
<td class=”td2″ align=”left”>M12</td>
</tr>
<tr>
<td class=”td” align=”left”>Adjustment Range:</td>
<td class=”td2″ align=”left”>Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°</td>
</tr>
<tr>
<td class=”td” align=”left”>Day&amp; Night:</td>
<td class=”td2″ align=”left”>IR cut filter with auto switch</td>
</tr>
<tr>
<td class=”td” align=”left”>HD Video Output:</td>
<td class=”td2″ align=”left”>1 Analog HD output</td>
</tr>
<tr>
<td class=”td” align=”left”>Synchronization:</td>
<td class=”td2″ align=”left”>Internal Synchronization</td>
</tr>
<tr>
<td class=”td” align=”left”>D/N Mode:</td>
<td class=”td2″ align=”left”>Auto / Color / B/W</td>
</tr>
<tr>
<td class=”td” align=”left”>AGC:</td>
<td class=”td2″ align=”left”>Support</td>
</tr>
<tr>
<td class=”td” align=”left”>Language:</td>
<td class=”td2″ align=”left”>English/Chinese</td>
</tr>
<tr>
<td class=”td” align=”left”>Function:</td>
<td class=”td2″ align=”left”>Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR</td>
</tr>
<tr>
<td class=”td” align=”left”>Operating Conditions:</td>
<td class=”td2″ align=”left”>-40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)</td>
</tr>
<tr>
<td class=”td” align=”left”>Power Consumption:</td>
<td class=”td2″ align=”left”>Max. 3 W</td>
</tr>
<tr>
<td class=”td” align=”left”>IR Range:</td>
<td class=”td2″ align=”left”>Up to 20m</td>
</tr>
<tr>
<td class=”td” align=”left”>Dimension:</td>
<td class=”td2″ align=”left”>Φ 110 mm × 93.2 mm (Φ 4.33″ × 3.67″)</td>
</tr>
<tr>
<td class=”td” align=”left”>Weight:</td>
<td class=”td2″ align=”left”>350 g (0.77 lb.)</td>
</tr>
</tbody>
</table>
