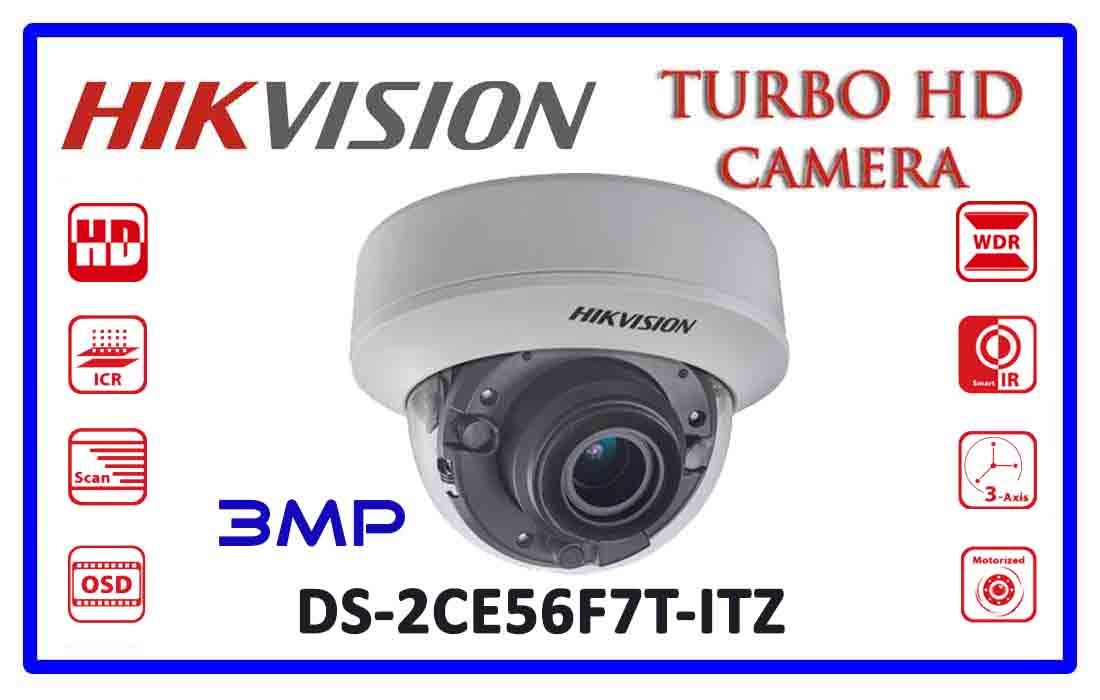

DS-2CE56F7T-ITZ
You are here: Home \ Products \ DS-2CE56F7T-ITZ

DS-2CE56F7T-ITZ

logo-2

• 3 Megapixel high-performance CMOS

• Analog HD output, up to 3MP resolution

• 2.8-12mm motorized vari-focal lens

• True Day/Night

• OSD menu, DNR, Smart IR

• True WDR, up to 120dB

• EXIR technology, up to 30m IR distance

• Up the Coax(HIKVISION-C)

Categories: , , ,

Description

Product Description : DS-2CE56F7T-ITZ
User Manual : DS-2CE56F7T-ITZ

Model DS-2CE56F7T-ITZ
Image Sensor: 3MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 2052(H)*1536(V)
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens Mount: φ14
Adjustment Range: Pan: 0 – 355°, Tilt: 0 – 75°, Rotation: 0 – 355°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120dB
Video Frame Rate: 1920 ×1536@18fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
Up the Coax: Support
Auto White Balance: Auto/MWB
BLC: Support
AGC: Support
Language: English/Chinese
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±15%
-A: 12 VDC±15%, 24 VAC±15%
IR Range: Up to 30m
Communication : Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension: φ136 × 102 mm (φ5.35” × 4.02”)
Weight: 600 g
