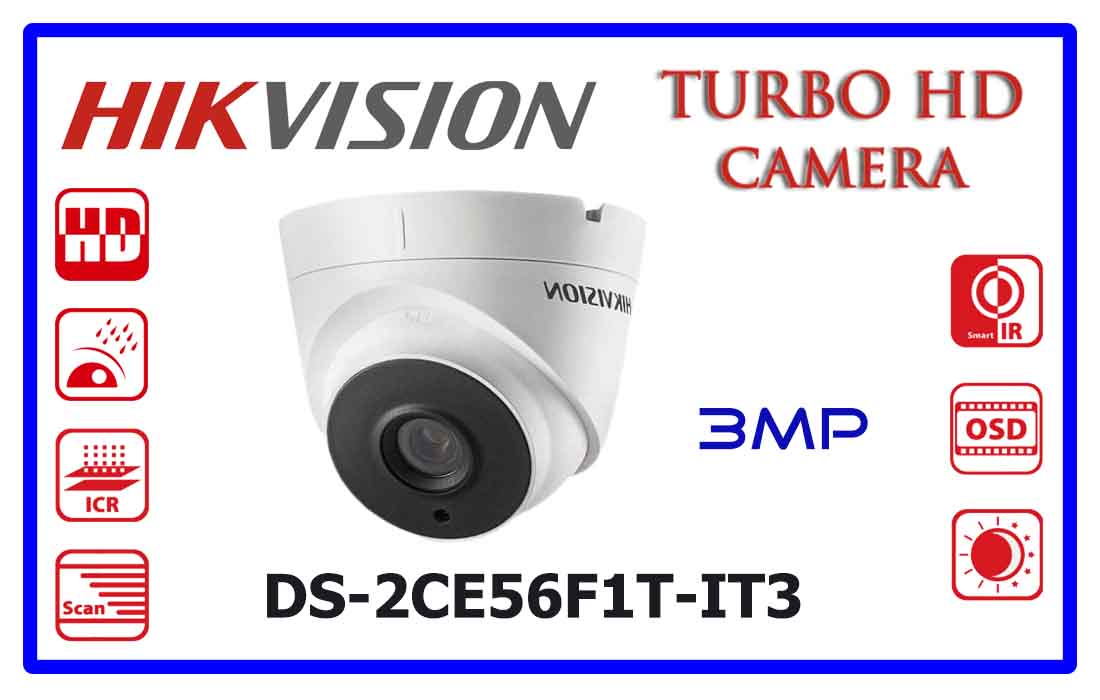

DS-2CE56F1T-IT3

3 Megapixel high-performance CMOS
Analog HD output, up to 3MP resolution
True Day/Night
OSD menu, DNR, Smart IR
EXIR technology, up to 20/40m IR distance
IP66 weatherproof
Up the Coax(HIKVISION-C)

Categories: , , ,

Description

DS-2CE56F1T-IT3 – Product Description

Model DS-2CE56F1T-IT3
Image Sensor: 3MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 2052(H)*1536(V)
Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm optional
Angle of View: 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm), 31.6°(8mm), 20.2°(12mm), 15.8°(16mm)
Lens Mount: M12
Adjustment Range: Pan: 0° – 360°; Tilt: 0° – 75°; Rotate: 0° – 360°
Day& Night: IR cut filter with auto switch
Video Frame Rate: 1920 ×1536@18fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
D/N Mode: Color/BW/SMART
Auto White Balance: Auto/MWB
BLC: Support
AGC: Support
Language: English/Chinese
Function: Digital noise reduction, Mirror, SMART IR
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±15%
Power Consumption: Max. 5W
Weather Proof: IP66
IR Range: Up to 40m
Communication Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension: φ110mm×93.2mm (φ4.33”×3.67”)
Weight: Approx. 350g (0.77lb)
