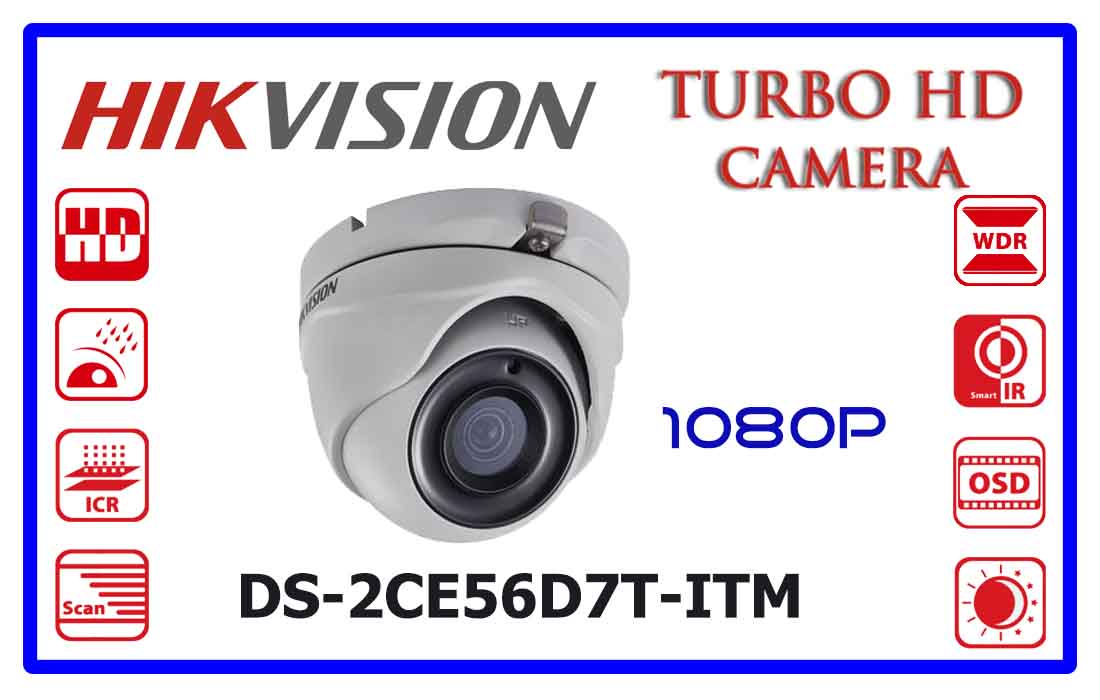

DS-2CE56D7T-ITM
You are here: Home \ Products \ DS-2CE56D7T-ITM

DS-2CE56D7T-ITM

logo-2
2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night
OSD menu, DNR, Smart IR
True WDR, up to 120dB
EXIR technology, up to 20m IR distance
IP66 weatherproof
Up the Coax(HIKVISION-C)

Categories: , , ,

Description

DS-2CE56D7T-ITM – Product Description

Model DS-2CE56D7T-ITM
Signal System: PAL/NTSC
Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 2.8mm/3.6mm/6mm optional
Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm)
Lens Mount: M12
Adjustment Range: Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 75dB
Video Frame Rate: 1080p@25fps/1080p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
Up the Coax: Support
AGC: Support
Language: English/Chinese
Function: Wide Dynamic Range; Digital Noise reduction; Mirror; SMART IR
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 V DC ± 10%, 24 V AC ± 10%
Power Consumption: Max. 5W
Weather Proof: IP66
IR Range: Up to 20m
Dimension: 91mm×82.6mm×68.3mm (3.58″×3.25″×2.69″)
Weight: Approx. 350g (0.77lb)
