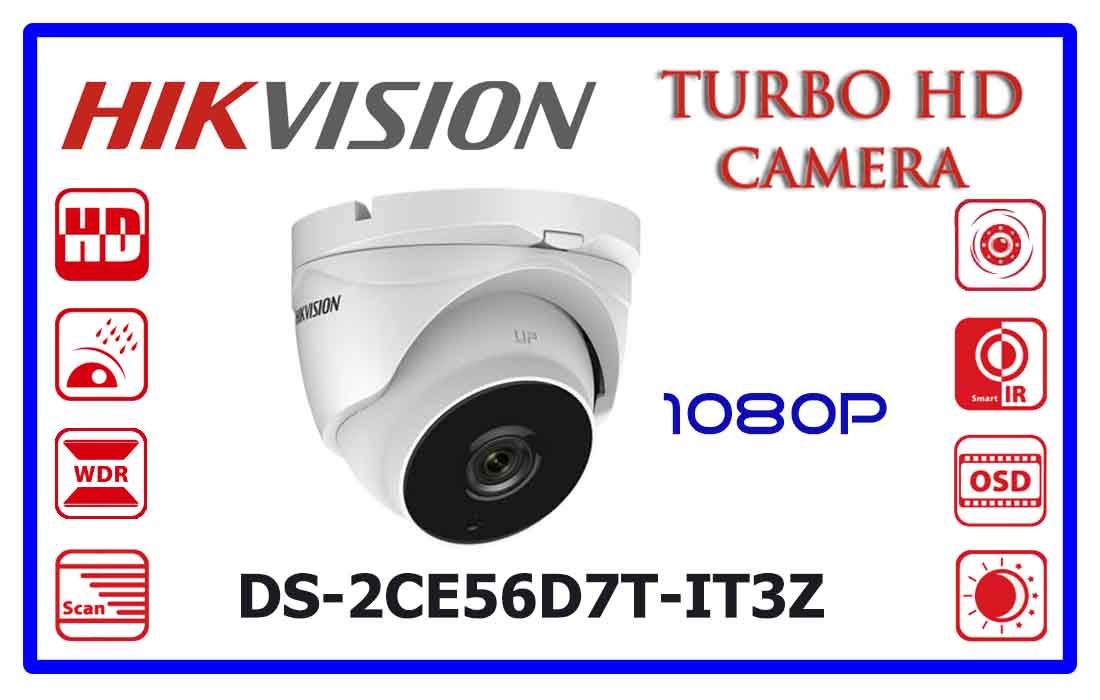

DS-2CE56D7T-IT3Z

logo-2
2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
2.8-12mm motorized vari-focal lens
True Day/Night
OSD menu, DNR, Smart IR
True WDR, up to 120dB
EXIR technology, up to 40m IR distance
IP66 weatherproof
Up the Coax(HIKVISION-C)

Categories: , , ,

Description

DS-2CE56D7T-IT3Z – Product Description

Model DS-2CE56D7T-IT3Z
Image Sensor: 2MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1928(H)*1088(V)
Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: Motorized VF lens; 2.8 – 12 mm
Angel of view: 35.1°-114.5°
Lens Mount: φ14
Adjustment Range: Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120dB
Video Frame Rate: 1080p@25fps/1080p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
Up the Coax: Support
Auto White Balance: Auto/MWB
BLC: Support
AGC: Support
Anti-flicker: On/ Off
Language: English/Chinese
Function: Wide Dynamic Range; Digital Noise reduction; Mirror; SMART IR
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±15%
Power Consumption: Max. 6W
Weather Proof: IP66
IR Range: Up to 40m
Communication : Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension: 134.3mm×123.9mm×111.4mm (5.29”×4.88”×4.39”)
Weight: Approx. 750g (1.57lb)
