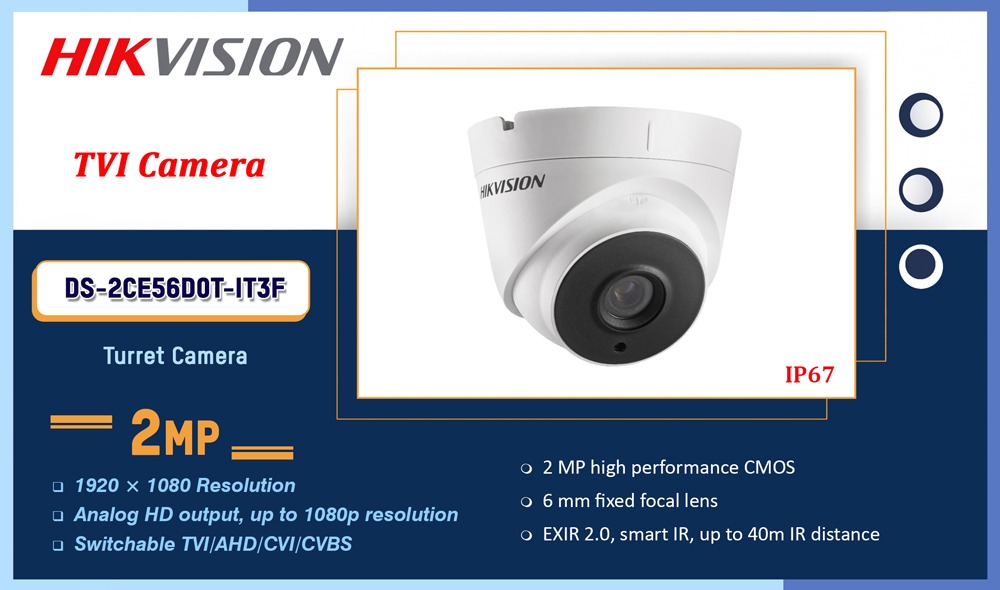

DS-2CE56D0T-IT3F
You are here: Home \ Products \ DS-2CE56D0T-IT3F

DS-2CE56D0T-IT3F

logo-2

Key Features

  • 2 Megapixel high-performance CMOS
  • Analog HD output, up to 1080P resolution
  • True Day/Night
  • Smart IR
  • EXIR technology, up to 20m/40m IR distance
  • IP66 weatherproof
  • Switchable TVI/AHD/CVI/CVBS
Categories: , , ,

Description

DS-2CE56D0T-IT3F – Product Description

DS-2CE56D0T-IT3F – User Manual

Model DS-2CE56D0T-IT3F
Image Sensor: 2MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1920(H)*1080(V)
Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 2.8mm, 3.6mm, 6mm optional
Lens Mount: M12
Adjustment Range: Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360°
Day& Night: IR cut filter with auto switch
Video Frame Rate: 1080p@25fps/1080p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±15%
Power Consumption: Max. 4W
Weather Proof: IP66
IR Range: Up to 40m
Dimension: Φ110 × 93.2 mm(Φ4.33” × 3.67”)
Weight: 350 g
