You are here: Home \ Products \ DS-2CE38D8T-PIR



PIR Detection; 11M Detection range
Ultra low light; 0.005lux
White light alarming (-L models)
New Profile; New naming rules
Audio Interface

Categories: , , ,

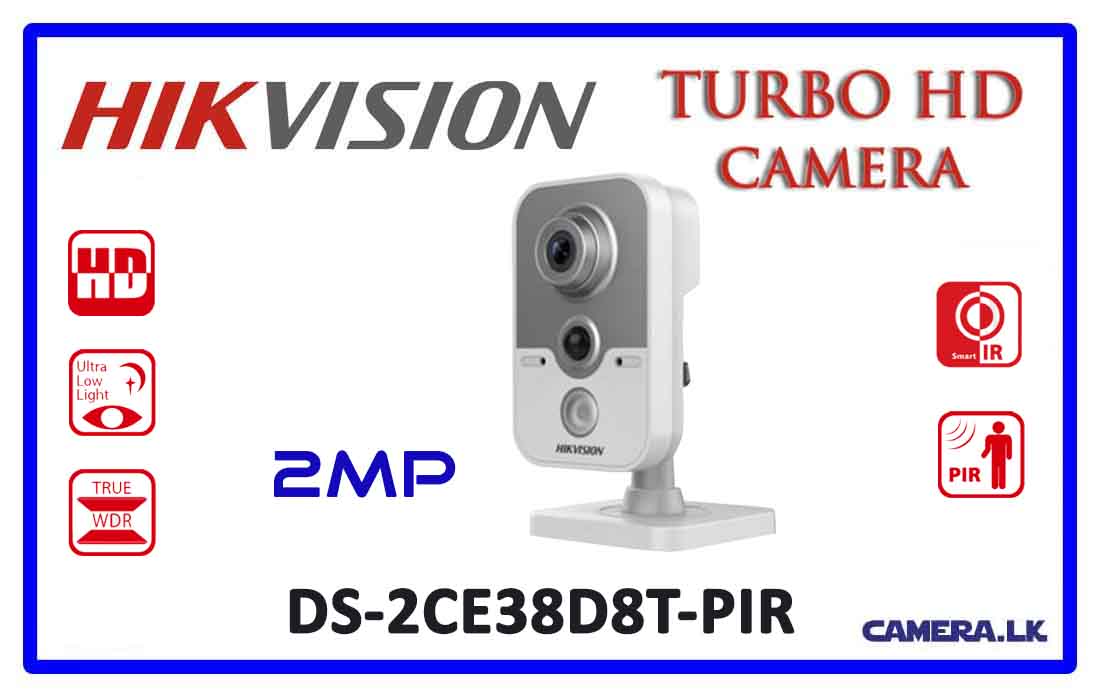

Product Description : DS-2CE38D8T-PIR

User Manual : DS-2CE38D8T-PIR

Model DS-2CE38D8T-PIR
Slow Shutter: Max. 16 times
WDR (Wide Dynamic Range): > 120 dB
Image Sensor: 2.0 megapixel progressive scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens: 2.8 mm, 3.6 mm fixed focal lens
Lens Mount: M12
Day& Night: IR cut filter
Horizontal Resolution: 1920 (H) × 1080 (V)
Synchronization: Internal Synchronization
Horizontal Field of View: 103.5°(2.8 mm), 80.3°(3.6 mm)
Backlight Compensation: WDR/BLC/OFF
3D DNR (Digital Noise Reduction): Level 1 to 10
D/N Mode: Auto/Color/BW (Black and White)
Auto White Balance: ATW/MANUAL
Private Mask: ON/OFF, 4 programmable privacy masks
Motion Detection: 4 programmable motion areas
AGC: Yes
Language: English/Chinese
Function: Brightness, Sharpness, Mirror, Smart IR
Audio In: Built-in microphone
Audio Out: 1 RCA
Video Out: 1 HD analog output
Material: Plastic
PIR Range: Angle: 110°, Range:11 m
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±25%
Power Consumption: Max. 5 W
IR Range: Up to 20m
Communication : Up the coax, Protocol: HIKVISION-C (TVI output)
Dimension: 104 mm × 66 mm × 41.07 mm (4.1″ × 2.6″ × 1.62″)
Weight: Approx. 210 g (0.46 lb.)
