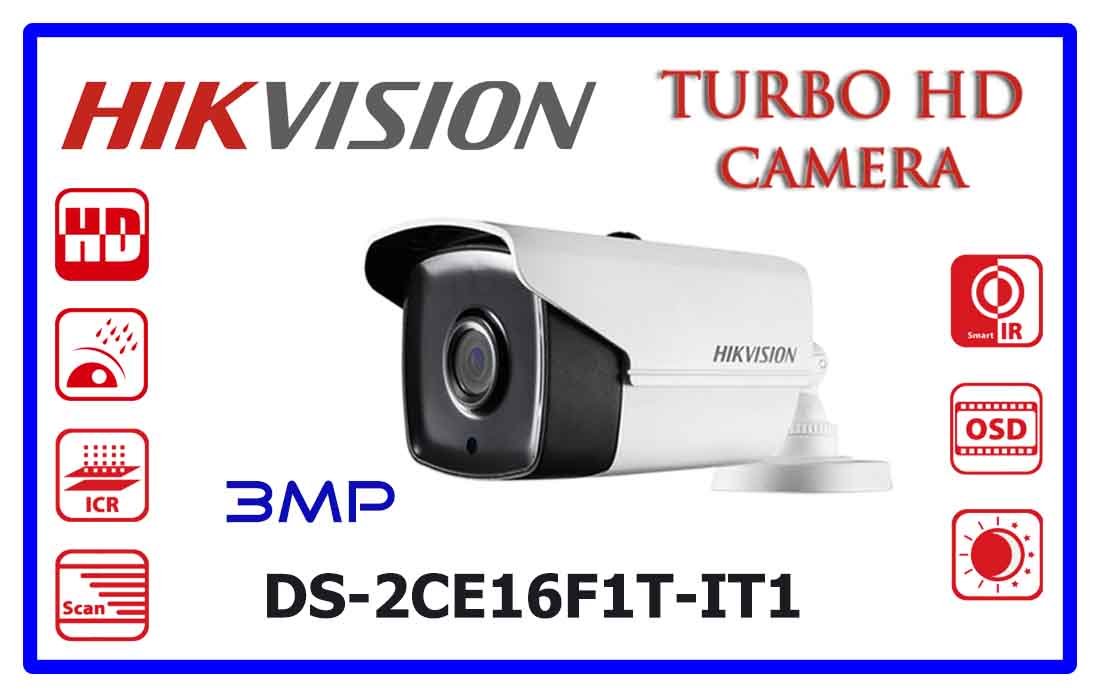

DS-2CE16F1T-IT1
You are here: Home \ Products \ DS-2CE16F1T-IT1

DS-2CE16F1T-IT1

logo-2
3 Megapixel high-performance CMOS
Analog HD output, up to 3MP resolution
True Day/Night
OSD menu, DNR, Smart IR
EXIR technology, up to 20/40/80m IR distance
IP66 weatherproof
Up the Coax(HIKVISION-C)

Categories: , , ,

Description

DS-2CE16F1T-IT1 – Product Description

Model DS-2CE16F1T-IT1
Image Sensor: 3MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 2052(H)*1536(V)
Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 2.8mm, 3.6mm, 6mm, optional
Angle of View: 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm)
Lens Mount: M12
Adjustment Range: Pan: 0 – 360°, Tilt: 0 – 90°, Rotation: 0 – 360°
Day& Night: IR cut filter with auto switch
Video Frame Rate: 1920 ×1536@18fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
Up the Coax: Support
Auto White Balance: Auto/MWB
BLC: Support
AGC: Support
Language: English/Chinese
Function: Digital Noise reduction; Mirror; SMART IR
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±15%
Power Consumption: Max. 5W
Weather Proof: IP66
IR Range: Up to 20m
Communication : Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension: 86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″)
Weight: Approx. 680g (1.5lb)
Every piece of security system equipment we carry has been fully tested to ensure our customers receive the best quality, performance and reliability. We are authorized dealers for all the security camera system products you see here, which allows us to offer the best pricing and an exceptional level of customer services. Our Customer support is unmatched with our 1 year warranty and lifetime technical support.
