Description

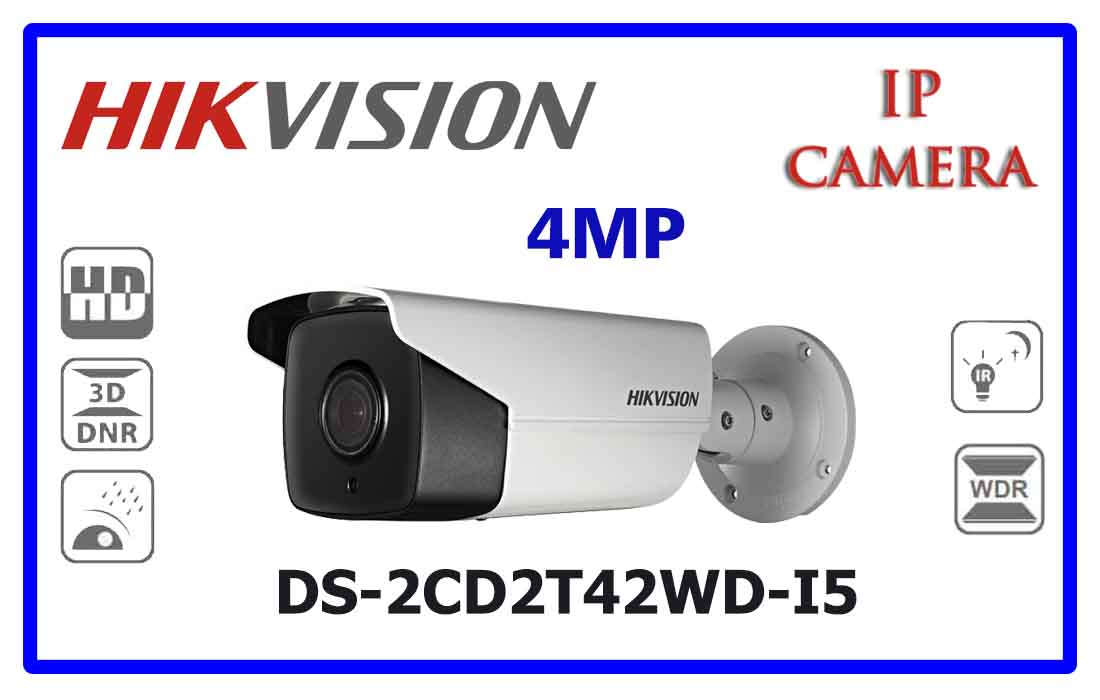

DS-2CD2T42WD-I5 – Product Description
| Model | DS-2CD2T42WD-I5 |
|---|---|
| Image Sensor: | 1/3″ Progressive Scan CMOS |
| Min. Illumination: | Color: 0.028 @ ƒ/2.0, AGC on), BW: 0 lux with IR |
| Shutter time: | 1/3 s to 1/10,000 s |
| Slow shutter: | Supported |
| Lens: | 4 mm, 6 mm options; angle of view: 83° (4 mm), 56° (6 mm) |
| Lens Mount: | M12 |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120 dB |
| Digital noise reduction: | 3D DNR |
| Video Compression: | H.264/MJPEG/H.264+ |
| H.264 Type: | Main profile |
| Video bit rate: | 256 Kbps – 16 Mbps |
| Dual Stream: | Yes |
| Max. Image Resolution: | 2688×1520 |
| Frame Rate: | 20 fps (2688 × 1520), 30 fps (1920 × 1080), (1280 × 720) |
| Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: | Yes, zone configurable |
| ROI: | Yes |
| 3D DNR: | Supported |
| Network Storage: | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger: | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols: | TCP/IP, ICMP,H TTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Security: | Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access |
| System Compatibility: | ONVIF, PSIA, CGI, ISAPI |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | Max. 7.5W |
| Weather Proof: | IP67 |
| IR Range: | 50 meters |
| Dimensions: | 299.71 mm × 86.48 mm × 85.11 mm (11.8″ × 3.4″ × 3.35″) |
| Weight: | 1200 g (2.65 lbs) |
